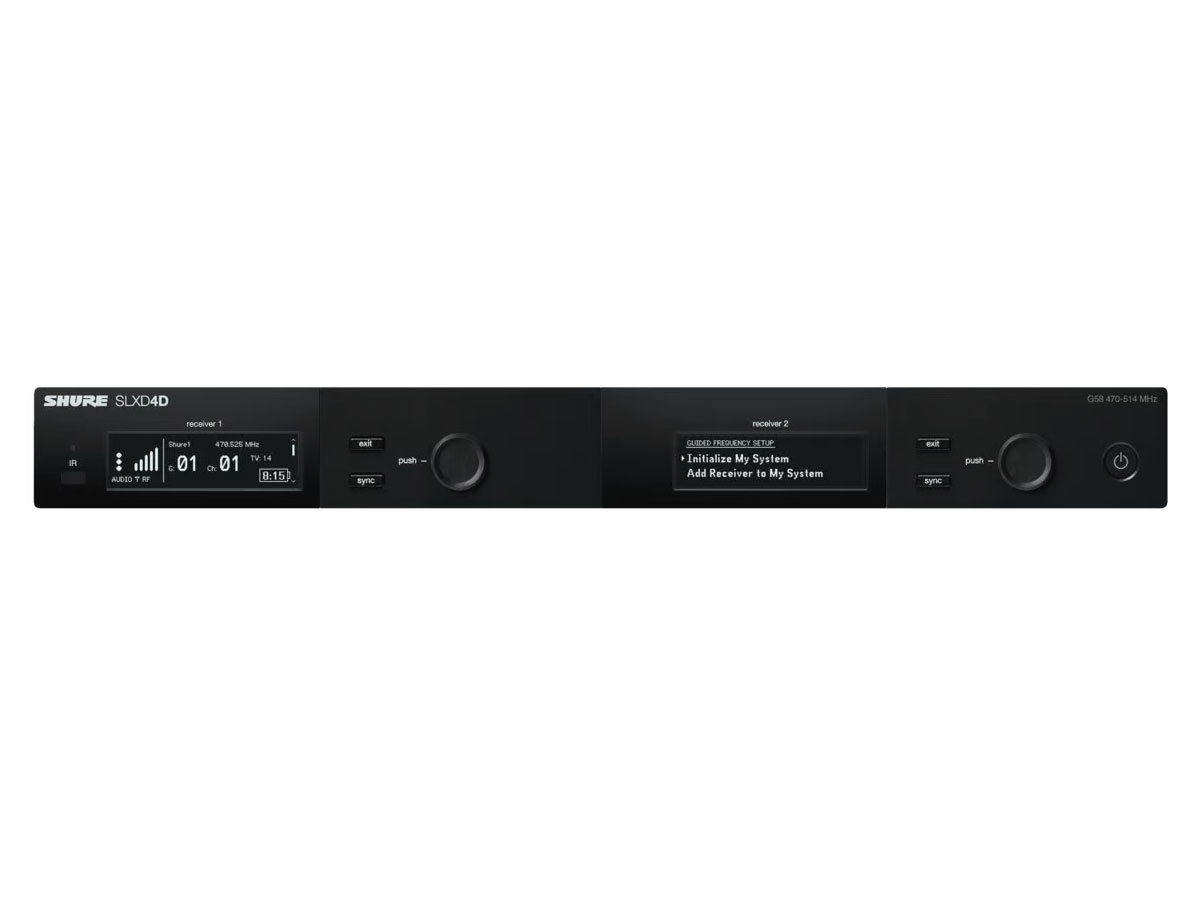

SHURE SLXD4D

SHURE SLXD4D

Dual Channel Receiver
0đ
Brand: Shure
Product Code: SLXD4DA
The SLXD4D Dual Receiver is the convenient, streamlining choice for confident speech presentation and vocal performance from lecture halls to live entertainment.
1 products available
SLX-D® Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations.  Featuring industry-leading digital wireless technology and design in a convenient dual, full-rack configuration, the SLXD4D saves space and accessories for any size of multi-system configuration   A variety of interchangeable microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

FEATURES
  •     Transparent 24-bit digital audio
  •     Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  •     120 dB dynamic range
  •     Digital predictive switching diversity
  •     Operating range of 100 m (300 ft.)
  •     44 MHz tuning bandwidth (region dependent)
  •     32 available channels per frequency band (region dependent)
  •     Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  •     Easy pairing of transmitters and receivers over IR scan and sync
  •     Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics.
  •     Rugged metal construction


  • Environment: Conference Room, Corporate Presentation, Auditorium, Lecture Hall, Live Performance, Place of worship, Rehearsal Space, Stadium, Theater Stage

SYSTEM

RF

  • RF Carrier Frequency Range: 470–937.5 MHz, varies by region (See Frequency Range and Output Power table)
  • Working Range: 100 m ( 328 ft)
  • RF Tuning Step Size: 25 kHz, varies by region
  • Image Rejection: >70 dB, typical
  • RF Sensitivity: −97 dBm at 10-5 BER

AUDIO

  • Latency: 3.2 ms
  • High-Pass / Low Cut Filter: 150 Hz @ -12 db/oct
  • Audio Frequency Response: 20 Hz– 20 kHz (+1, -2 dB)
  • Audio Dynamic Range: 118 dB at 1% THD, A-weighted, typical
  • Total Harmonic Distortion: <0.02%
  • System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (with respect to the ring of the 6.35 mm output) output.
  • Mic Offset Range: 0 to 21 dB (in 3 dB steps)

TEMPERATURE RANGE

  • Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
  • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)

SLXD4 / SLXD4D

  • Dimensions
SLXD4
 42 x 197 x 152 mm (1.65 x 7.76 x 5.98 in.), H x W x D
SLXD4D
 42 x 393 x 152 mm (1.65 x 15.47 x 5.98 in.), H x W x D
  • Weight
SLXD4
 816 g, without antennas
SLXD4D
 1451 g, without antennas
  • Housing: Galvanized Steel
  • Power Requirements: 15 V DC @ 600 mA, supplied by external power supply (tip positive)


RF INPUT

  • Spurious Rejection: >75 dB, typical
  • Connector Type: BNC
  • Impedance: 50 Ω
  • Phantom Power Protection:
1/4" (6.35 mm)
 Yes
XLR
 Yes

AUDIO OUTPUT

  • Gain Adjustment Range: -18 to +42 dB (in 1 dB steps)
  • Configuration
1/4" (6.35 mm)
 Balanced (Tip = audio +, Ring = audio -, Sleeve = ground )
XLR
 Balanced (1=ground, 2=audio +, 3=audio −)
  • Impedance

1/4" (6.35 mm)
1.3 kΩ (670 ΩUnbalanced)
XLR (line)
400 Ω (200 ΩUnbalanced)
XLR (mic)
150 Ω
  • Full Scale Output
1/4" (6.35 mm)
 +15 dBV differentially (+9 dBV single)
XLR
 LINE setting= +15  dBV, MIC setting= -15  dBV
  • Mic/Line Switch: 30 dB pad

NETWORKING

  • Network Interface: Single Port Ethernet 10/100 Mbps
  • Network Addressing Capability: DHCP or Manual IP address
  • Maximum Cable Length: 100 m (328 ft)
