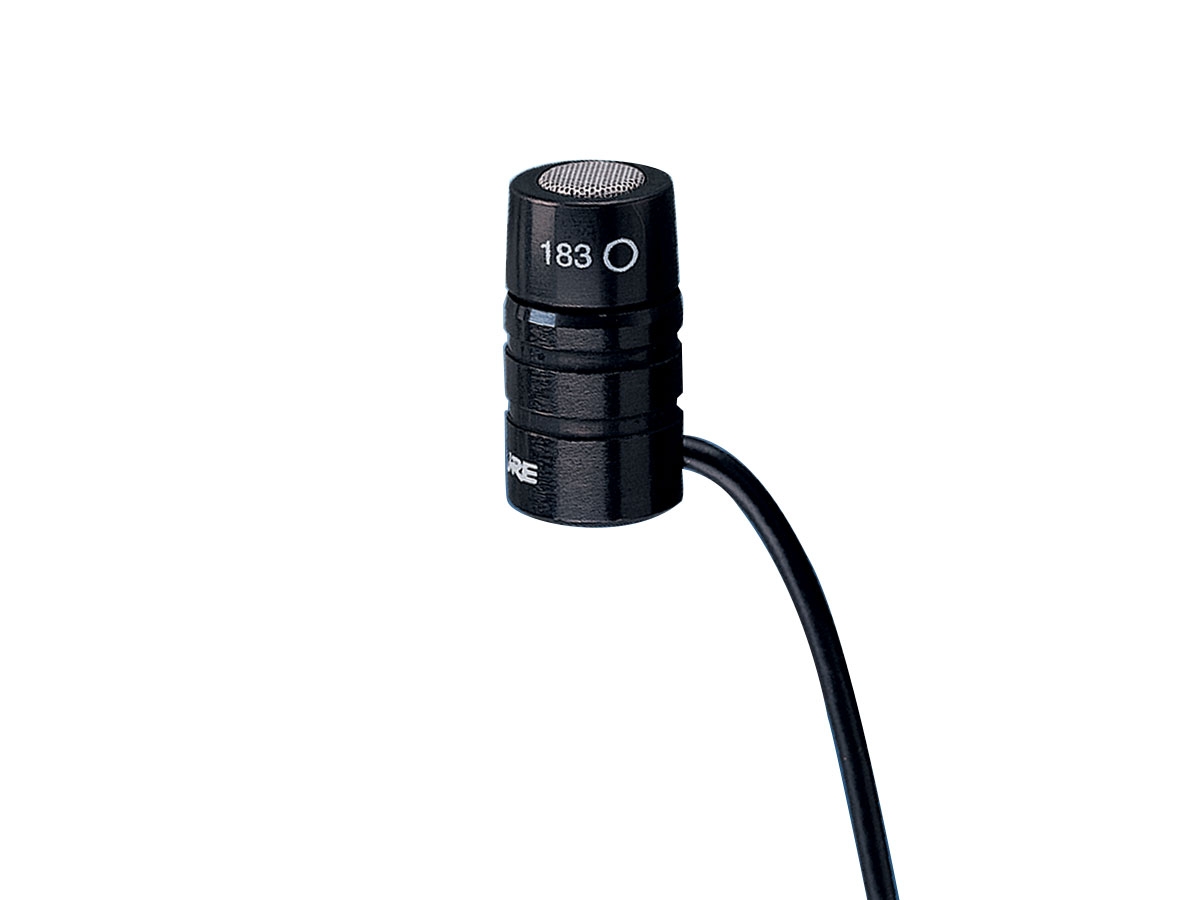

SHURE MX183

SHURE MX183

Omnidirectional Lavalier Microphone
8,424,000đ
Brand: Shure
Product Code: MX183

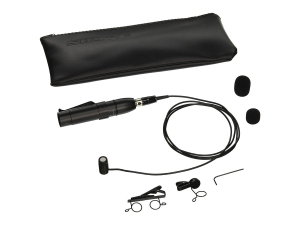

Omnidirectional lavalier microphone offers an interchangeable condenser cartridge and consists of a windscreen and a dual tie clip for 2 microphones. It features wide dynamic range and frequency response for accurate and balanced sound reproduction.
2 products available
What is the MX183 best suited to?
The MX183 omnidirectional miniature lavalier condenser microphone is designed for use in speech applications such as broadcast presenting, speeches, lectures and for use in houses of worship.

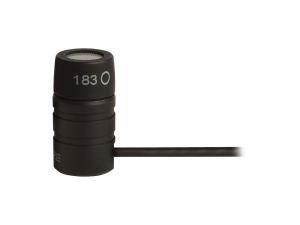

shure mx183

What is an interchangeable cartridge?
All the Microflex series of microphones use interchangeable cartridges (sold separately) which means you can swap between cardioid, supercardioid and omnidirectional condenser cartridges simply by screwing them on to the top of the lavalier mic.

shure mx183 mx184 mx185

Want to go wireless?
The MX183 is designed for wired use and includes an in-line preamplifier and a 1.2m cable with TA4F connector. If you wish to go wireless, choose the WL183 which is the same microphone but without the pre-amplifier and connects directly into any Shure wireless bodypack.

shure mx183


FEATURES

  • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
  • Interchangeable cartridges that provide an optimal choice for each application
  • Rotatable tie-clip that pivots in 90 degree increments for placement flexibility
  • Supplied snap-fit foam windscreen that controls breath noise and stays on securely
  • Balanced, transformerless output for increased immunity to noise over long cable runs
  • Supplied dual tie clip holds two microphones for dual miking applications


shure mx183

  • Type: Electret Condenser
  • Frequency Response: 50–17000 Hz
  • Polar Pattern

MX183

Omnidirectional

MX185

Cardioid

MX184

Supercardioid
  • Output Impedance: 180 Ω
  • Output Configuration: Active Balanced
  • Sensitivity (@ 1 kHz, open circuit voltage)

Cardioid

–35 dBV/Pa(18  mV)

Supercardioid

–34 dBV/Pa(21  mV)

Omnidirectional

–28 dBV/Pa(42  mV)
  • Maximum SPL (1 kHz at 1% THD, 1 kΩ load)

Cardioid

124 dB

Supercardioid

123 dB

Omnidirectional

117 dB
  • Self Noise (A-weighted)

Cardioid

28 dB SPL

Supercardioid

27 dB

Omnidirectional

21 dB SPL
  • Signal-to-Noise Ratio (Ref. 94 dB SPL at 1 kHz)

Cardioid

66 dB

Supercardioid

68 dB

Omnidirectional

74 dB
  • Dynamic Range (1 kΩ load, @ 1 kHz): 96 dB
  • Common Mode Rejection (10 Hz to 100 kHz): 45 dB, minimum
  • Clipping Level at 1% THD: –6 dBV (0.5 V)
  • Polarity: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
  • Environmental Conditions

Operating Temperature

–18–57°C (0–135°F)

Storage Temperature

–29–74°C (–20–165°F)

Relative Humidity

0–95%
  • Power Requirements: 11–52  V DC, 2.0 mA
  • Cable: 1.2 m (4 ft)
