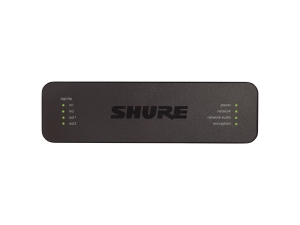

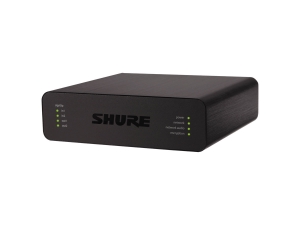

General
Analog Connections
| Inputs |
Active Balanced |
ANI22-XLR |
(2) XLR connector |
| ANI22-BLOCK |
(2) 6-pin block connector |
| Outputs |
Impedance Balanced |
ANI22-XLR |
(2) XLR connector |
| ANI22-BLOCK |
(2) 3-pin block connector |
Network Connections (Dante Digital Audio)
(1) RJ45
Channel Count: 2 Inputs, 2 Outputs
Polarity
Non-inverting, any input to any output
Phantom Power
selectable per channel
+48 V
Power Requirements
Power over Ethernet (PoE), Class 0. (PoE Plus compatible).
Power Consumption
11W, maximum
Weight
672 g (1.5 lbs)
Dimensions
H x W x D
4 x 14 x 12.8 cm ( 1.6 x 5.5 x 5.0 in.)
Control Software
HTML5 Browser-based
Operating Temperature Range
−6.7°C (20°F) to 40°C (104°F)
Storage Temperature Range
−29°C (-20°F) to 74°C (165°F)
Thermal Power Dissipation
| Maximum |
12.1 W ( 41.3 BTU/hr) |
| typical |
9.8 W ( 33.7 BTU/hr) |
Audio
Frequency Response
±1 dB
20 to 20,000 Hz
Dante Digital Audio
| Sampling Rate |
48 kHz |
| Bit Depth |
24 |
Latency
| Does not include Dante latency |
Analog to Dante |
0.35 ms |
| Dante to Analog |
0.71 ms |
analog gain range
Adjustable in 3 dB steps
51 dB
Dynamic Range (Analog-to-Dante)
20 Hz to 20 kHz, A-weighted, typical
113 dB
Equivalent Input Noise
20 Hz to 20 kHz, A-weighted, input terminated with 150Ω
| Analog Gain Setting= +0 dB |
-93 dBV |
| Analog Gain Setting= +27 dB |
-119 dBV |
| Analog Gain Setting= +51 dB |
-130 dBV |
Total Harmonic Distortion
@ 1 kHz, 0 dBV Input, 0 dB analog gain
<0.05%
Common Mode Rejection Ratio
150Ω balanced source @ 1 kHz
>70 dB
Input Impedance
5 kΩ
Output Impedance
150 Ω
Input Clipping Level
| Analog Gain Setting= +0 dB |
+20 dBV |
| Analog Gain Setting= +27 dB |
-7 dBV |
| Analog Gain Setting= +51 dB |
-31 dBV |
Analog Output Level
| Selectable |
Line |
0 dB |
| Aux |
- 20 dB |
| Mic |
-46 dB |
Built-in Digital Signal Processing
| Per Channel |
Equalizer (4-band Parametric, Dante Channels Only) , Mute, Limiter, Gain ( 140 dB range) |
| System |
Channel Summing |
Networking
Cable Requirements
Cat 5e or higher (shielded cable recommended)
