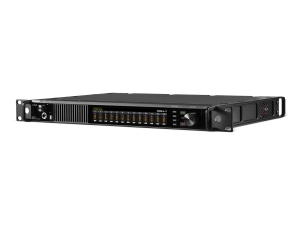

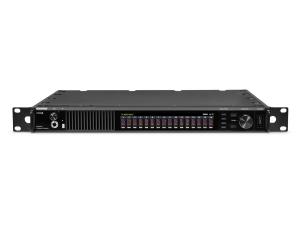

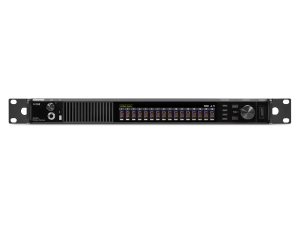

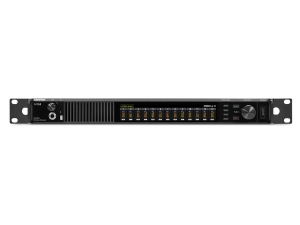

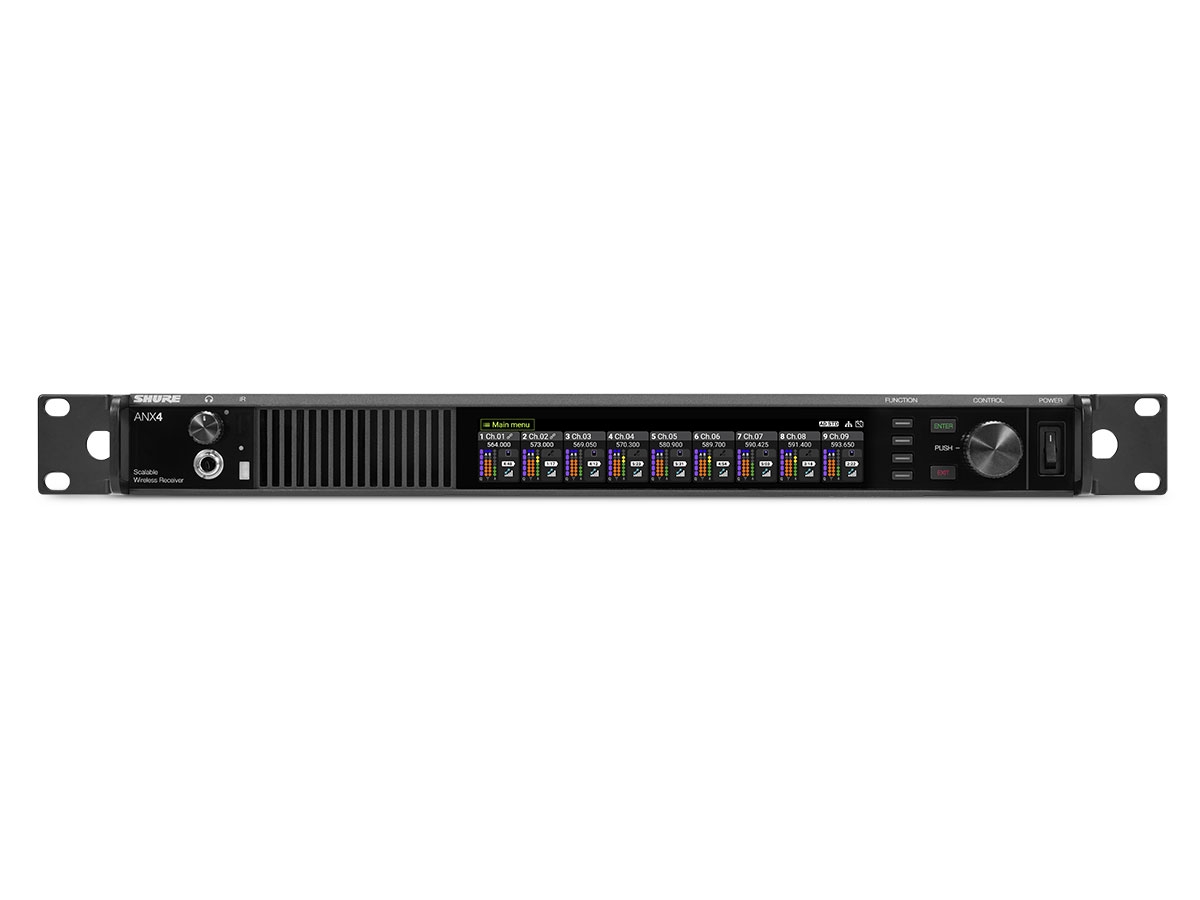

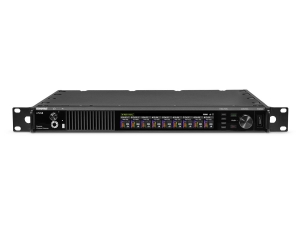

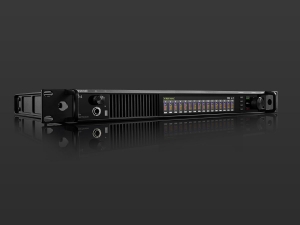

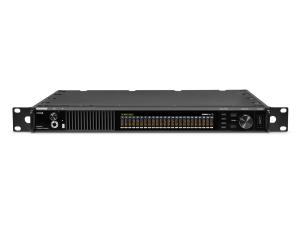

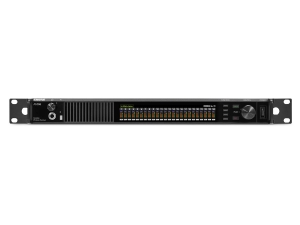

Mechanical
Dimensions
44 x 482 x 286 mm (1.7 x 19 x 11.3 inches), H x W x D
Weight
3.89 kg (8.58 lb), without antennas
Housing
Steel; Extruded aluminum
Case top: Aluminum
Operating Temperature Range
-18°C (0°F) to 50°C (122°F)
Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)
Thermal Power Dissipation
Maximum |
61.3 W (209.3 BTU/hr) |
Idle |
49.2 W (167.9 BTU/hr) |
Power Requirements
100 to 240 V AC, 50-60 Hz, 1.4 A max.
Fuse
T5A
PoE
PoE Class 1 (IEEE 802.3af)

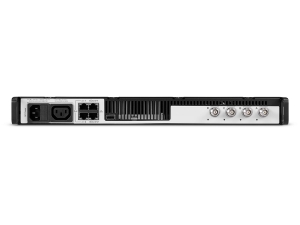

RF Input
Spurious Rejection
>80 dB, typical
Connector Type
BNC
Impedance
50 Ω
Configuration
Unbalanced, passive
Bias Voltage
12 to 13.5 V DC, 150 mA maximum per antenna. Switchable on-off. 300 mA total per receiver
Insertion Loss
0 dB, typical
RF and Audio Performance
RF Carrier Frequency Range
174 - 2000 MHz
Working Range
Note: Actual range depends on RF signal absorption, reflection and interference.
100 m (330 ft)
Gain Adjustment Range
−18 to +42 dB in 1 dB steps (plus Mute setting)
RF Tuning Step Size
25 kHz, varies by region
Image Rejection
> 90 dB, typical
RF Sensitivity
ULX-D |
-95 dBm at 10-5 BER |
Axient Digital |
−93.5 dBm at 10-5 BER |
Latency
ULX-D Standard |
< 2.9 ms |
ULX-D High Density |
< 3.2 ms |
Axient Digital Standard |
< 2.1 ms |
Axient Digital High Density |
< 3.0 ms |
Audio Frequency Response
20 Hz – 20 kHz (±1 dB)
Audio Dynamic Range
typical, 20 Hz to 20 kHz, System Gain @ +12 dB
124 dB A-weighted
Total Harmonic Distortion
-6 dBFS, 1 kHz, System Gain @ +12 dB
< 0.1%
System Audio Polarity
Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
Headphone Monitor Audio Output
Audio Frequency Response
20 Hz - 20 kHz, +/- 3 dB
Configuration
¼" / 6.3 mm connector, unbalanced stereo
Impedance
63 Ω
Maximum Signal Level
350 mW
Pin Assignments
Tip: Audio + , Left: | , Ring: Audio + , Right: | , Sleeve: Ground
Networking
Network Interface
10/100 Mbps, 1 Gbps, Dante Digital Audio
Network Addressing Capability
DHCP or Manual IP address
Maximum Cable Length
100 m (330 ft)
DC Module Specifications
DC Input Voltage Range
11.3 to 16 V DC, 10 A max.
Maximum DC Input Current
5.5 A, 10 A max.
Protection Modes
Reverse polarity, over voltage
Connector Type
4-pin XLR (male)
