| MODEL |

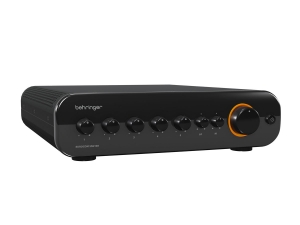

Behringer Eurocom SN2108 |

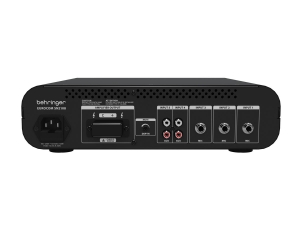

| Audio Inputs |
3x 1/4" (6.35 mm) TRS
2x Stereo Summed RCA
|
| Audio Outputs |
1x 2-Position Terminal Block Speaker Output
|
| Impedance |
1/4" TRS: 600 Ω Balanced @ -50 dBv
Stereo Summed RCA: 10 kΩ Unbalanced
|
| Amplifier |
Channels:
1x 70 V Hi-Z
Power Output Lo-Z:
80 W RMS @ 70 V (@ 1% THD, 1 kHz Sine Wave)
Minimum Impedance:
62.5 Ω
|
| Controls |
5x Level Control Knobs
1x Lo Tone Control Knob, +/- 15 dB @ 100 Hz
1x Hi Tone Control Knob, +/- 15 dB @ 10 kHz
1x Master Volume Knob
1x Mute Depth Knob
1x Power On/Off Button
1x Voltage Switch, 100 to 240 VAC, 50/60 Hz
|
| Indicators |
1x Dual Functioning Indicator Ring
Power On: Yellow
Clip: Red
|
| Output Circuit |
Type: Transformerless Class D
|
| Protection |
Amplifier: Thermal and DC Automatic Limiters
|
| Frequency Response |
50 Hz to 18 kHz, ±1 dB @ 1 W (70 V)
|
| Dynamic Range |
Mic: 65 dB
Auxiliary: 80 dB
|
| THD + Noise |
0.05% @ 1 W, 1 kHz dBr into 62.5 Ω load
|
| Signal to Noise Ratio |
90 dB @ 1% THD+N
|
| Power Supply |
Mains Voltage: 100 to 240 VAC, 50/60 Hz
Fuse: T 3.15 A H 250 V
Power Efficiency: 70%
Power Consumption: 38 W @ 1/8 of Maximum Rate Output
Mains Connector: Standard IEC receptacle
|
| Dimensions |
3.3 x 12.0 x 14.2" (8.3 x 30.5 x 36.0 cm)
|
| Weight |
8.2 lb (3.7 kg)
|
| Package Weight |
9.75 lb
|
| Box Dimensions (LxWxH) |
17.5 x 15.4 x 7.5"
|
