| MODEL |

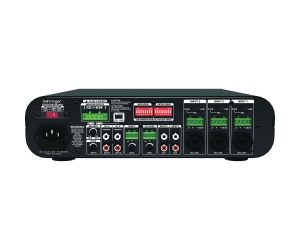

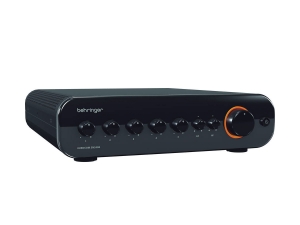

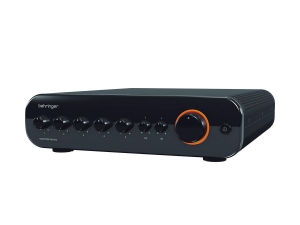

Behringer Eurocom SN2408 |
| Inputs |
Microphone Inputs:
3x Combo XLR/TRS jacks
3x 4-pin Euroblock connectors
Auxiliary Inputs:
2x Stereo RCA (summed)
Telephone/Page Input:
1x 3-pin Euroblock connector
Amp Inputs:
2x RCA
|
| Outputs |
Zone 1 Speaker Output:
1x 4-pin Euroblock connector (LO-Z and HI-Z)
Zone 2 Line Level Output:
1x 3-pin Euroblock connector
Preamp Outputs:
2x RCA
|
| Input Impedance |
Microphone Combo XLR/TRS Inputs: -50 dBv @ 600 Ω (balanced)
Euroblock Inputs: 0 dBv @ 10 k Ω (balanced)
Auxiliary Inputs: 0 dB @ 10 kΩ (unbalanced)
Telephone/Page Input: -10 dBv @ 600 Ω (balanced)
|
| Output Impedance |
4 dBV @ 600 Ω balanced
|
| Phantom Power |
24 VDC
|
| Amplifier |
Channels:
LO-Z: 1x 4 Ω (minimum)
HI-Z: 1x 70/100 V (switchable)
Power Output LO-Z:
80 W RMS @ 8 Ω, 1 % THD, 1 kHz sine wave, minimum 4 Ω
Power Output HI-Z:
80 W RMS @ 70 V (minimum 62.5 Ω)
160 W RMS @ 100 V (minimum 62.5 Ω, 1 % THD @ 1 kHz sine wave)
|
| Controls |
3x Mic/Line gain (inputs 1 to 5)
1x Lo Tone knob ± 15 dB @ 100 Hz
1x Hi Tone knob ± 15 dB @ 10 kHz
1x Master Volume knob
1x Telephone/Page Level knob
1x Zone 2 Send Level knob
1x Mute Depth knob
1x Power On/Off switch
1x Voltage 115/230 VAC switch
1x HI-Z Mode 70/100 V switch
3x Phantom/Mic/Line 3 position DIP switch
1x Mute Assign 8-position DIP switch
1x Output Assign 8-position switch
|
| Indicators |
1x Dual-function indicator ring (yellow - power on; red - clip)
|
| Circuit |
Type: 2x Transformerless Class D
Dual Output: LO-Z & HI-Z
|
| Protection |
Amplifier: Thermal and DC protection, automatic limiters
|
| Frequency Response |
50 Hz to 218 kHz (± 1 dB @ 1 W, 70 / 100 V)
|
| Dynamic Range |
Mic: 65 dB
Auxiliary: 80 dB
Telephone/Page: 78 dB
|
| Total Harmonic Distortion/Noise |
0.05 % @ 1 W (1 kHz dBr into 8 Ω load)
|
| Signal to Noise Ratio |
90 dB @ 1% THD+N
|
| Power Supply |
Mains Voltage: 100 to 120 VAC (switchable), 220 to 240 VAC, 50/60 Hz
Fuse: T 6.3 A H 250 V
Power Efficiency: 70%
Power Consumption: 80 W @ 1/8 of maximum rated output
Mains Connector: Standard IEC receptacle
|
| Dimensions |
3.3 x 12.0 x 14.2" (8.3 x 30.5 x 36.0 cm)
|
| Weight |
9.2 lb (4.2 kg)
|
