Behringer ZMX8210

Behringer ZMX8210

Mixer 8 kênh 3 Bus chuyên nghiệp có điều khiển từ xa và cổng liên kết
0đ
Hãng sản xuất: Behringer
Mã sản phẩm: ZMX8210-EU

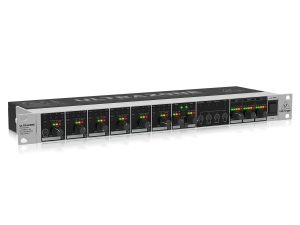

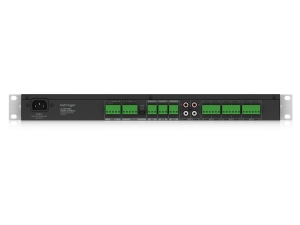

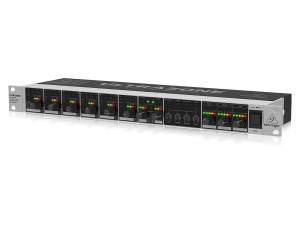

A professional 8-channel audio mixer designed specifically for fixed installations, the rack-mountable ULTRAZONE ZMX8210 zone mixer can distribute your music programming and announcements to up to three zones (rooms). Typical applications include restaurants, office spaces, health clubs and houses of worship, just to name a few.
1 sản phẩm có sẵn
Inputs 1 – 6
Type

Euroblock connector, balanced
Impedance

5 kΩ balanced, 2.5 kΩ unbalanced
Maximum input level

+12 dBu (with Pad)
Maximum gain

 40 dB
Pad

-20 dB
Crosstalk

-63 dB @ 1 kHz
Common-mode rejection ratio (CMRR)

> 70 dB @ 1 kHz, 22 Hz – 22 kHz

Equivalent input noise (EIN)

-116 dBu, A-weighted;  terminated with 150 Ω
Inputs 7 – 8
Type

RCA connector, unbalanced
Impedance

 20 kΩ, unbalanced
Maximum input level

+10 dBu
Maximum gain

13 dB
Out L / Out R / Aux
Type

Euroblock connector, balanced
Impedance

120 Ω balanced, 60 Ω unbalanced
Max. gain

 18 dB
Max. gain (input / output)

58 dB (without Pad)
Maximum output level

+21 dBu
Crosstalk (output / output)

-63 dB @ 1 kHz
Noise (All level controls down)

-105 dBu, A-weighted
Signal-to-noise ratio

87 dB @ 0 dB, A-weighted
Bus Links
Type

Euroblock connector, unbalanced
Impedance

2.7 kΩ
Maximum output level

+14 dBu
Remote
Type

Euroblock connector
Volume control

"30 dB attenuation with  10 kΩ potentionmeter (not included) 60 dB attenuation with  100 kΩ potentionmeter (not included)"
Channel select 7 / 8

Push-button switch required (not included)
Equalizer Section
Mic low cut

100 Hz, 18 dB/oct. high-pass filter, Butterworth
Low

±15 dB @ 70 Hz, shelving
Low mid

±15 dB @ 300 Hz
High mid

±15 dB @ 3 kHz
High

±15 dB @ 10 kHz, shelving
System Specifications
Frequency response

20 Hz to 22 kHz, ±0.5 dB
Distortion (THD+N)

< 0.05 %
Power supply, Voltage, Current Consumption
Switch mode power supply

Autorange, 100-240 V~ 50/60 Hz
Power consumption

15 W
Main connection

Standard IEC receptacle
Dimensions / Weight
Dimensions (H x W x D)

44 x 483 x 153 mm (1.7 x 19.0 x 6.0")
Weight

 1.7 kg (3.7 lbs)
