| MODEL |

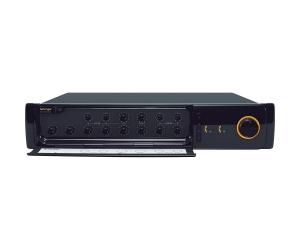

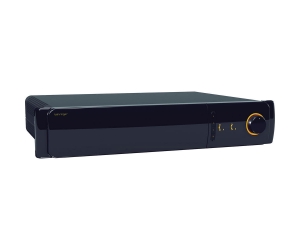

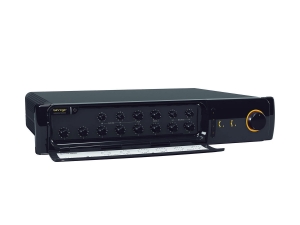

Behringer Eurocom MA6018 |
| Audio Inputs |
8x Combo XLR/TRS mic/line
8x 5-Pin Euroblock mic/line (in parallel)
4x Stereo summed RCA auxiliary
1x 4-Pin Euroblock page input
|
| Input Impedance |
Mic: -50 to 0 dBV @ 600 Ω (electronically balanced)
Line: -27 to 0 dBV @ 600 Ω (electronically balanced)
Auxiliary : -10 dBV @ 10 kΩ (unbalanced)
|
| Preamp Output |
70 V Input:
1x 5-Pin Euroblock
Impedance: 0 dBV @ 600 Ω (balanced)
4 Ω Input:
1x 5-Pin Euroblock
Impedance: 0 dBV @ 600 Ω (balanced)
Hi-Z & Lo-Z Preamp Output:
2x 5-Pin Euroblock
Impedance: 0 dBV @ 600 Ω (balanced)
|
| Phantom Power |
24 VDC
Switchable on inputs 1 to 8 and Tel/Page input
|
| Audio Outputs |
Amplifier Output: 1x 4-Pin female Euroblock
Lo-Z Output: 2x terminals @ 4 Ω
Hi-Z: 2x terminals @ 70/100 V (switchable)
Direct Out: 8x 5-Pin Euroblock
Z2/MOH Output: 1x 5-Pin Euroblock
|
| Output Impedance |
0 dBV @ 600 Ω (balanced)
|
| Dynamic Range |
Mic: 65 dB
Line: 80 dB
|
| THD & Noise |
0.5% @ 1 kHz (rated output)
|
| Frequency Response |
50 Hz to 18 kHz (± 2 dB)
|
| Tone Controls |
Master:
Low: ± 10 dB @ 100 Hz
High: ± 10 dB @ 12 kHz
Inputs 1 to 8:
Low: ± 15 dB @ 100 Hz
High: ± 15 dB @ 12 kHz
|
| Channels |
Lo-Z: 1x 4 Ω (minimum)
Hi-Z: 1x 70/100 V (switchable)
|
| Power Output |
Lo-Z: 180 W RMS @ 4 Ω (minimum, 1% THD @ 1 kHz sine wave)
Hi-Z: 180 W RMS (27 Ω minimum @ 70 V, 55 Ω minimum @ 100 V; 1% THD @ 1 kHz sine wave)
|
| Connections |
Remote: 1x 5-Pin Euroblock
Common: -5 VDC @ 100 mA (short-circuit protected)
Remote Power: 5 VDC @ 100 mA (current limited, short-circuit protected)
RVC: 10 kΩ linear taper potentiometer
Aux Input Select: used in conjunction with wall remote to select aux feed
Power On/Off: 5 VDC voltage make contact input, no open voltage
Inputs 1 to 8: no voltage make contact input; open voltage 5 VDC, short circuit < 10 mA
|
| Indicators |
Power: Yellow LED ring illumination
Overload: Red LED ring illumination
Output Level: LED VU meter (yellow and red when clipping)
|
| Power Supply |
Mains Voltage: 100 to 120/220 to 240 VAC, 60/50 Hz (switchable)
Mains Connector: Standard IEC receptacle
Fuse: T 6.3 AH 250 V/T 3.15 AH 250 V
Power Efficiency: 72% maximum
|
| Power Consumption |
Idle: 54 W
1/8 Power: 110 W
1/3 Power: 210 W
Full Power: 500 W
|
| Dimensions |
3.5 x 17.0 x 16.0" (8.8 x 43.2 x 40.6 cm)
|
| Weight |
14.1 lb (6.4 kg)
|
| Package Weight |
17.4 lb
|
| Box Dimensions (LxWxH) |
22.5 x 16.9 x 8.1"
|
