SYSTEM
RF
- RF Carrier Frequency Range: 470–937.5 MHz, varies by region (See Frequency Range and Output Power table)
- Working Range: 100 m ( 328 ft)
- RF Tuning Step Size: 25 kHz, varies by region
- Image Rejection: >85 dB, typical
- RF Sensitivity: −97 dBm at 10-5 BER
AUDIO
- Latency: 2.8 ms
- High-Pass / Low Cut Filter: 160 Hz, -12 db/oct
- Audio Frequency Response: 20 Hz– 20 kHz (+1, -2 dB)
- Audio Dynamic Range: 118 dB at 1% THD, A-weighted, typical
- Total Harmonic Distortion: <0.02%
- System Audio Polarity:
- XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
- TRS: Postive pressure on microphone diaphragm produces positive voltage on the
- Mic Offset Range: 0 to 21 dB (in 3 dB steps)
TEMPERATURE RANGE
- Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
- Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
BLUETOOTH (BLE)
- Frequency Range: 2402–2480 MHz
- RF Power: 10 mW EIRP
- Modulation Type: BLE (GFSK)
- Antenna Type: Chip
- Antenna Gain: -0.7 dBi

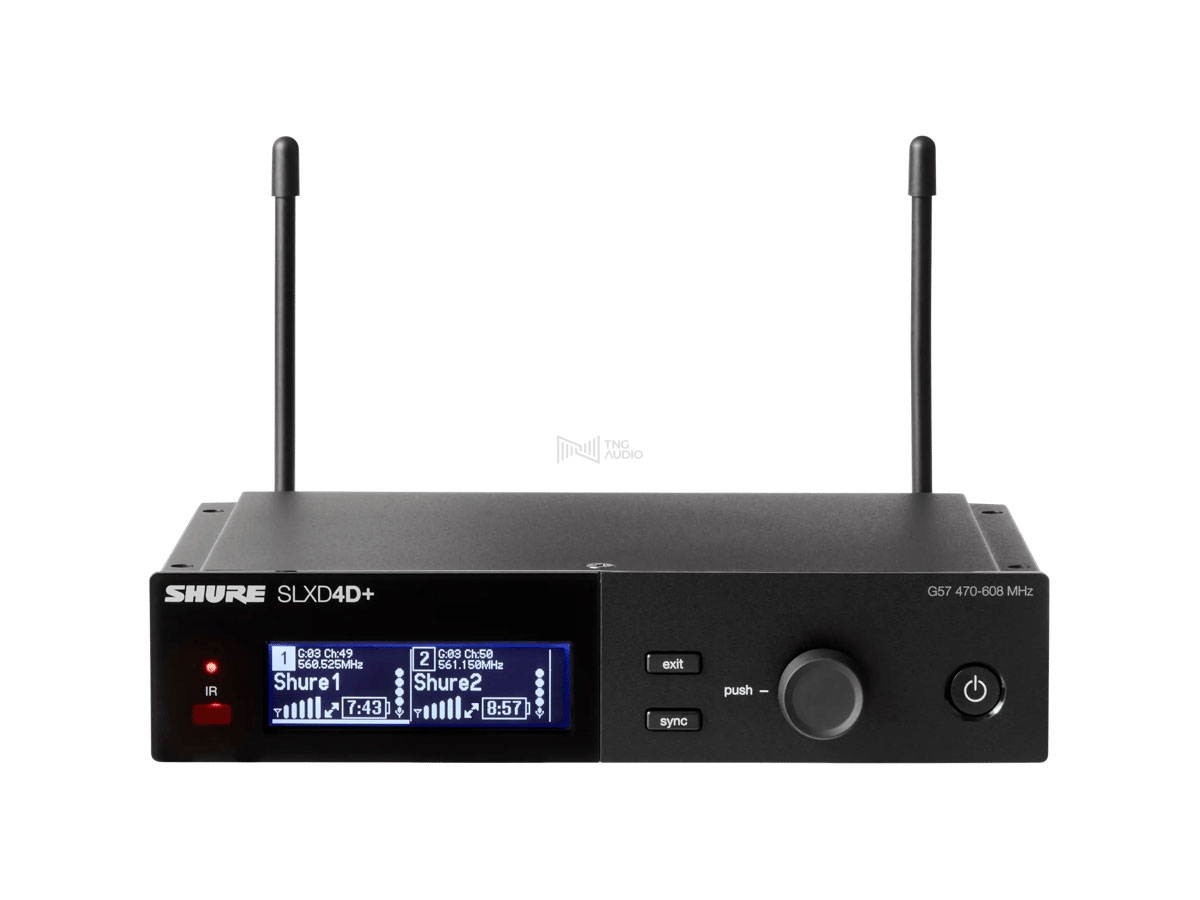

SLXD4+ and SLXD4D+ Rack Receiver
Dimensions
| SLXD4+ |
42 x 197 x 152 mm (1.65 x 7.76 x 5.98 in.), H x W x D |
| SLXD4D+ |
42 x 197 x 152 mm (1.65 x 7.76 x 5.98 in.), H x W x D |
Weight
| SLXD4+ |
900 g, without antennas |
| SLXD4D+ |
930 g, without antennas |
Housing
Galvanized Steel
Power Requirements
15 V DC @ 360 mA, supplied by external power supply (tip positive)
RF Input
Spurious Rejection: >75 dB, typical
Connector Type: BNC
Impedance: 50 Ω
Phantom Power Protection
| 1/4" (6.35 mm) |
Yes |
| XLR |
Yes |
Audio Output
Audio Frequency Response: 20 Hz– 20 kHz (+1, -2 dB)
Gain Adjustment Range: -18 to +42 dB in 1 dB steps
Configuration
| 1/4" (6.35 mm) |
Balanced (Tip = audio +, Ring = audio -, Sleeve = ground ) |
| XLR |
Balanced (1=ground, 2=audio +, 3=audio −) |
Impedance
| 1/4" (6.35 mm) |
1.1 kΩ (550 Ω Unbalanced) |
| XLR (line) |
500 Ω (250 Ω Unbalanced) |
| XLR (mic) |
150 Ω |
Full Scale Output
| 1/4" (6.35 mm) |
+18 dBV differentially (+12 dBV single) |
| XLR |
LINE setting = +18 dBV, MIC setting = -12 dBV |
Mic/Line Switch: 30 dB pad
Networking
Network Interface: Single Port Ethernet 10/100 Mbps
Network Addressing Capability: DHCP or Manual IP address
Maximum Cable Length: 100 m (328 ft)
