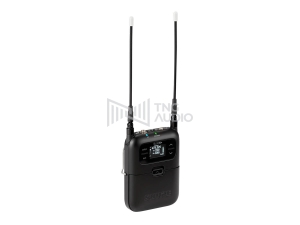

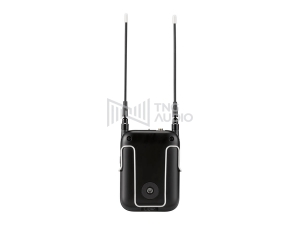

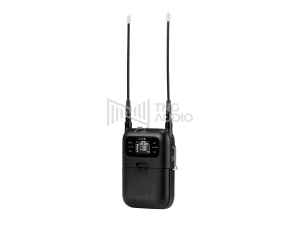

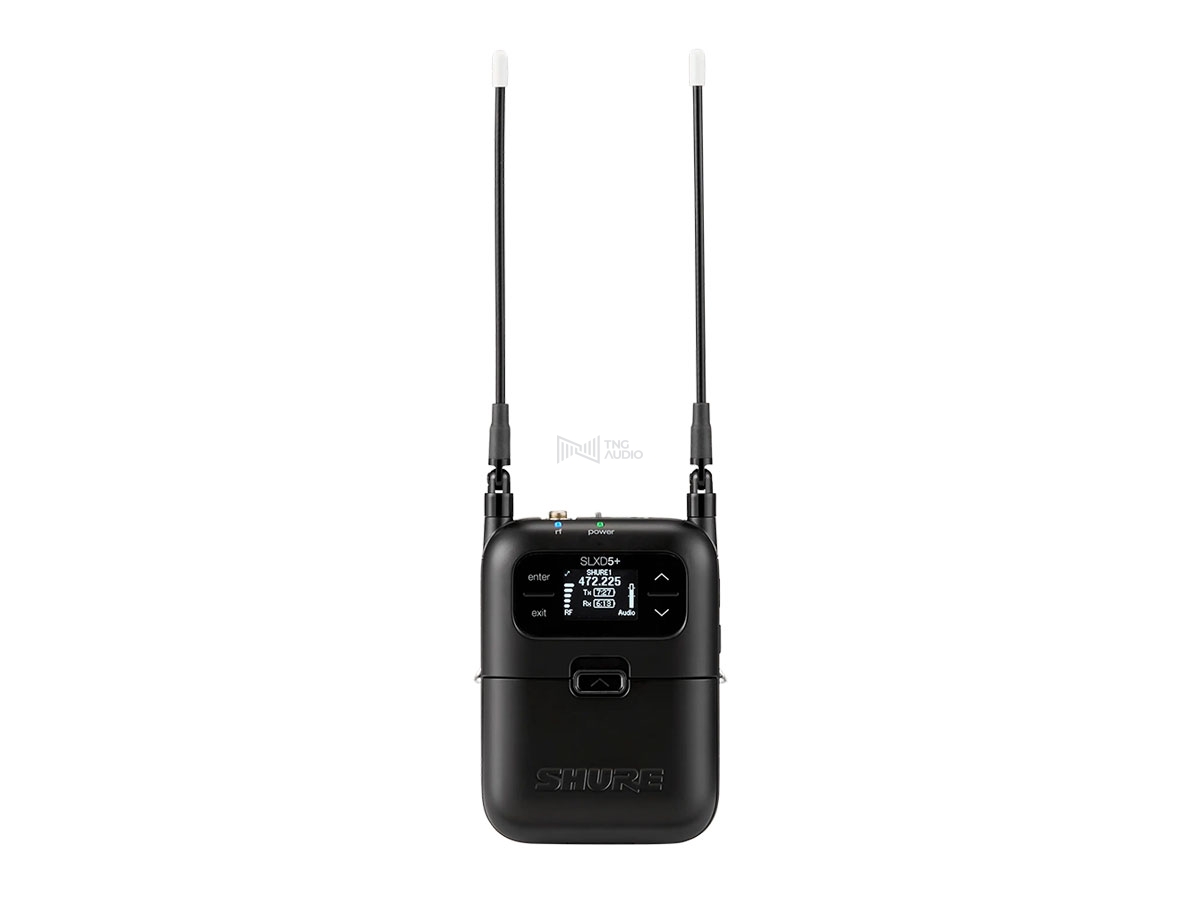

SLXD5 Bodypack Receiver
Dimensions
107 × 68 × 25.3 mm (4.21 × x 2.68 x 1 in.), H×W×D
Weight
182 g
Housing
Aluminum
Power Requirements
| Battery |
Rechargeable Li-Ion, or 1.5 V AA batteries (2) |
| Power Supply |
SBC-DC-903 Battery Eliminator, or 5V DC via USB-C |
RF Input
Spurious Rejection
>75 dB, typical
Impedance
50 Ω
Phantom Power Protection
Yes
Antenna Type
¼ wave whip
Audio Output
Audio Frequency Response
20 Hz– 20 kHz (+1, -3 dB)

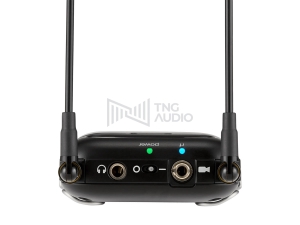

Connector Type
⅛" (3.5 mm), x2
Configuration
| Balanced |
Tip = audio +, Ring = audio -, Sleeve = ground |
| Stereo |
Tip = left, Ring = right, Sleeve = ground |
See drawing for details
Impedance (Camera)
| Balanced Line |
450 Ω |
| Balanced Mic |
240 Ω |
| Stereo Line |
400 Ω |
| Stereo Mic |
200 Ω |
Full Scale Output
| Camera (balanced line) |
15 dBV |
| Headphone |
13mW @ 64 Ω load |
