SHURE KSM137

SHURE KSM137

Cardioid Instrument Microphone
12,204,000đ
Brand: Shure
Product Code: KSM137/SL-X
Cardioid instrument microphone delivers excellent sound isolation and superior transient response. It features a gold-layered Mylar diaphragm, preamplifier for transparency, subsonic filter to stop low frequency rumble, and a pad for handling SPLs.
1 products available

What is the KSM137 best suited to?

Recommended applications include the close-miking of acoustic and electric instruments, drum overheads, brass/woodwind, ensembles, and even bass instruments such as double bass and kick drum. The KSM137 is equally at home in the studio or in live applications.

micro nhạc Shure KSM137 thu âm đàn guitar


What characteristics can I expect when using a KSM137?

The KSM137 microphone can withstand extremely high sound pressure levels (SPL). It has a high output level, low self noise and reproduces low frequency sounds exceptionally well.

micro nhạc cụ Shure KSM137 thu âm trống


FEATURES

  • A highly consistent cardioid polar pattern
  • Ultra-thin, 2.5 micron, 24 karat gold-layered, low mass Mylar® diaphragm for superior transient response
  • Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response, no crossover distortion, and minimal harmonic distortion
  • Premium electronic components, including gold-plated internal and external connectors
  • Subsonic filter eliminates low frequency rumble (less than 17 Hz) caused by mechanical vibration
  • Switchable 15 dB pad for handling extremely high sound pressure levels (SPLs)
  • Three-position switchable pad (0 dB, 15 dB, and 25 dB) for handling extremely high sound pressure levels (SPLs)
  • Three-position switchable low-frequency filter reduces background noise and counteracts proximity effect


micro condenser cho nhạc cụ Shure KSM137


Performance Characteristics


  • Extended frequency response
  • Exceptional reproduction of low-frequency sounds
  • Can withstand high sound pressure levels (SPL)
  • Superior common mode rejection and suppression of radio frequency interference


micro condenser nhạc cụ Shure KSM137



Common Applications

  • Acoustic instruments -- such as piano, guitar, drums, percussion, strings
  • Wind instruments -- brass and woodwind
  • Low frequency instruments -- such as double bass, electric bass, kick drum
  • Overhead miking -- drums or percussion
  • Ensembles -- choral or orchestral
  • Room ambiance pick-up -- guitar amplifier or drums

The KSM137 is an end-address condenser microphone with a single cardioid polar pattern. Designed for studio use, yet rugged enough for live applications, the KSM137 can withstand extremely high sound pressure levels (SPL). Its low self-noise and extended frequency response make it ideal for recording instruments.

Versatile, durable, and precise, the KSM137 is an outstanding microphone for instruments ranging from percussion to wind, strings to brass, and piano to guitar.


Find An Answer

Shure KSM137 compared to SM81
Choir Miking - KSM137 or SM81
Choosing the Right Mic
Which microphone should I use on ... ? (Selection Guides)
How to Choose the Best Microphones for Home Recording
Vocal mic for choir

MODEL KSM137
Transducer Type Condenser
Polar Pattern Cardioid
Frequency Range From (Hz) 20
Frequency Range To (kHz) 20
Sensitivity dBV/Pa -37.00
Sensitivity mvpa 14.10
Equivalent Selfnoise 14 dB(A)
Maximum Sound Pressure 145 dB, 170 dB(-25 dB Pad)
Impedance (Ω) 150
Switchable Low Cut yes
Output Connectors 3 Pin XLR
Attenuation PAD yes
Interchangeable Capsule no
Requires Phantom Power (VDC) 11-52
Weight (g) / (lbs) 100 g / 0.22 lbs
Height (mm) / (in) 122 mm / 4.803 in
Width (mm) / (in) 20 mm / 0.787 in
Depth (mm) / (in) 20 mm / 0.787 in
User Guide & Specs
KSM137 User Guide(en)

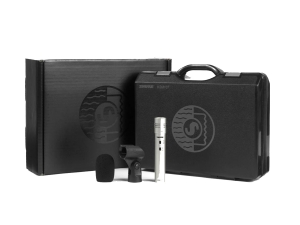

  • 1 A100C Case

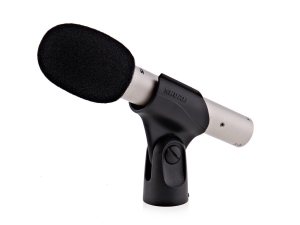

  • 1 A100WS Windscreen
  • 1 A57F Stand Adapter
