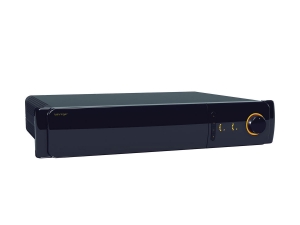

Behringer Eurocom MA6008
Auto-Mixing Amplifier
The EUROCOM MA6008 Auto-Mixing Amplifier from Behringer allows you to distribute audio to speakers in two different zones and page listeners within those zones. This unit also allows for the installation of hybrid multi-zone systems combining distributed music and low-impedance speakers because it is driven by two independent Class-D mono amplifiers.
Viewed490 times
The EUROCOM MA6008 Auto-Mixing Amplifier from Behringer allows you to distribute audio to speakers in two different zones and page listeners within those zones. This unit also allows for the installation of hybrid multi-zone systems combining distributed music and low-impedance speakers because it is driven by two independent Class-D mono amplifiers. The first amplifier operates with a standard low impedance output while the second features a selectable output voltage of 70 or 100 volts. The combined amplifiers produce 80-watts of output. The unit additionally features eight main channels with combination XLR/TRS and five-pin Euroblock microphone/line inputs with selectable phantom power, trim control, and independent high and low EQ knobs. The unit has an additional four-pin Euroblock telephone/page input and four stereo RCA inputs for playback from external sources. The Zone 2 output can also be assignable for music on hold (MOH) needs. With all of these features, the MA6008 is designed for continuous operation in settings that require distributed music and paging, such as conference rooms, houses of worship, restaurants, or clubs.
- Energy-saving Switch-Mode Power technology with up to 68% power efficiency drastically reduces energy cost
- Two transformerless, cool-running Class-D amplifiers simultaneously drive 70/100 V and 4 Ω loads with adjustable Balance control
- Multi-featured, dedicated page input with assignable Chime, switchable Mic/Line and Phantom power
- Wired Remote volume, power control and aux channel selection plus remote volume assign switch available with optional remote
- Individual front panel input Level, Lo and Hi Main and Aux EQ, Aux input and Zone 2 Level controls
- Features telephone and paging functions including assignable muting (signal, switch, or contact closure activated), an assignable chime, and assignment of any aux input to Zone 2/ Music on Hold (MOH) bus
- 5-Pin Euroblock Bridge in and out connectors allow for multiple units to be connected
- Auto-dimming control illumination, dual channel VU meter, Power switch, and dual-function indicator ring surrounding Master volume control
| MODEL | Behringer Eurocom MA6008 |
| Audio Inputs |
8x Combo XLR/TRS mic/line
8x 5-Pin Euroblock mic/line (in parallel) 4x Stereo summed RCA auxiliary 1x 4-Pin Euroblock page input |
| Input Impedance |
Mic: -50 to 0 dBV @ 600 Ω (electronically balanced)
Line: -27 to 0 dBV @ 600 Ω (electronically balanced) Auxiliary : -10 dBV @ 10 kΩ (unbalanced) |
| Preamp Output |
70 V Input:
1x 5-Pin Euroblock Impedance: 0 dBV @ 600 Ω (balanced) 4 Ω Input: 1x 5-Pin Euroblock Impedance: 0 dBV @ 600 Ω (balanced) Hi-Z & Lo-Z Preamp Output: 2x 5-Pin Euroblock Impedance: 0 dBV @ 600 Ω (balanced) |
| Phantom Power |
24 VDC
Switchable on inputs 1 to 8 and Tel/Page input |
| Audio Outputs |
Amplifier Output: 1x 4-Pin female Euroblock
Lo-Z Output: 2x terminals @ 4 Ω Hi-Z: 2x terminals @ 70/100 V (switchable) Direct Out: 8x 5-Pin Euroblock Z2/MOH Output: 1x 5-Pin Euroblock |
| Output Impedance |
0 dBV @ 600 Ω (balanced)
|
| Dynamic Range |
Mic: 65 dB
Line: 80 dB |
| THD & Noise |
0.5% @ 1 kHz (rated output)
|
| Frequency Response |
50 Hz to 18 kHz (± 2 dB)
|
| Tone Controls |
Master:
Low: ± 10 dB @ 100 Hz High: ± 10 dB @ 12 kHz Inputs 1 to 8: Low: ± 15 dB @ 100 Hz High: ± 15 dB @ 12 kHz |
| Channels |
Lo-Z: 1x 4 Ω (minimum)
Hi-Z: 1x 70/100 V (switchable) |
| Power Output |
Lo-Z: 80 W RMS @ 8 Ω (minimum, 1% THD @ 1 kHz sine wave)
Hi-Z: 80 W RMS @ 70/100 V (62 Ω minimum @ 70 V, 125 Ω minimum @ 100 V; 1% THD @ 1 kHz sine wave) |
| Connections |
Remote: 1x 5-Pin Euroblock
Common: -5 VDC @ 100 mA (short-circuit protected) Remote Power: 5 VDC @ 100 mA (current limited, short-circuit protected) RVC: 10 kΩ linear taper potentiometer Aux Input Select: used in conjunction with wall remote to select aux feed Power On/Off: 5 VDC voltage make contact input, no open voltage Inputs 1 to 8: no voltage make contact input; open voltage 5 VDC, short circuit < 10 mA |
| Indicators |
Power: Yellow LED ring illumination
Overload: Red LED ring illumination Output Level: LED VU meter (yellow and red when clipping) |
| Power Supply |
Mains Voltage: 100 to 120/220 to 240 VAC, 60/50 Hz (switchable)
Mains Connector: Standard IEC receptacle Fuse: T 6.3 AH 250 V/T 2.5 AH 250 V Power Efficiency: 67% maximum |
| Power Consumption |
Idle: 44 W
1/8 Power: 70 W 1/3 Power: 110 W Full Power: 240 W |
| Dimensions |
3.5 x 17.00 x 16.00" (8.8 x 43.2 x 40.6 cm)
|
| Weight |
13.7 lb (6.2 kg)
|
| Package Weight |
16.887 lb
|
| Box Dimensions (LxWxH) |
22.3 x 17 x 7.2"
|
