SHURE MX690

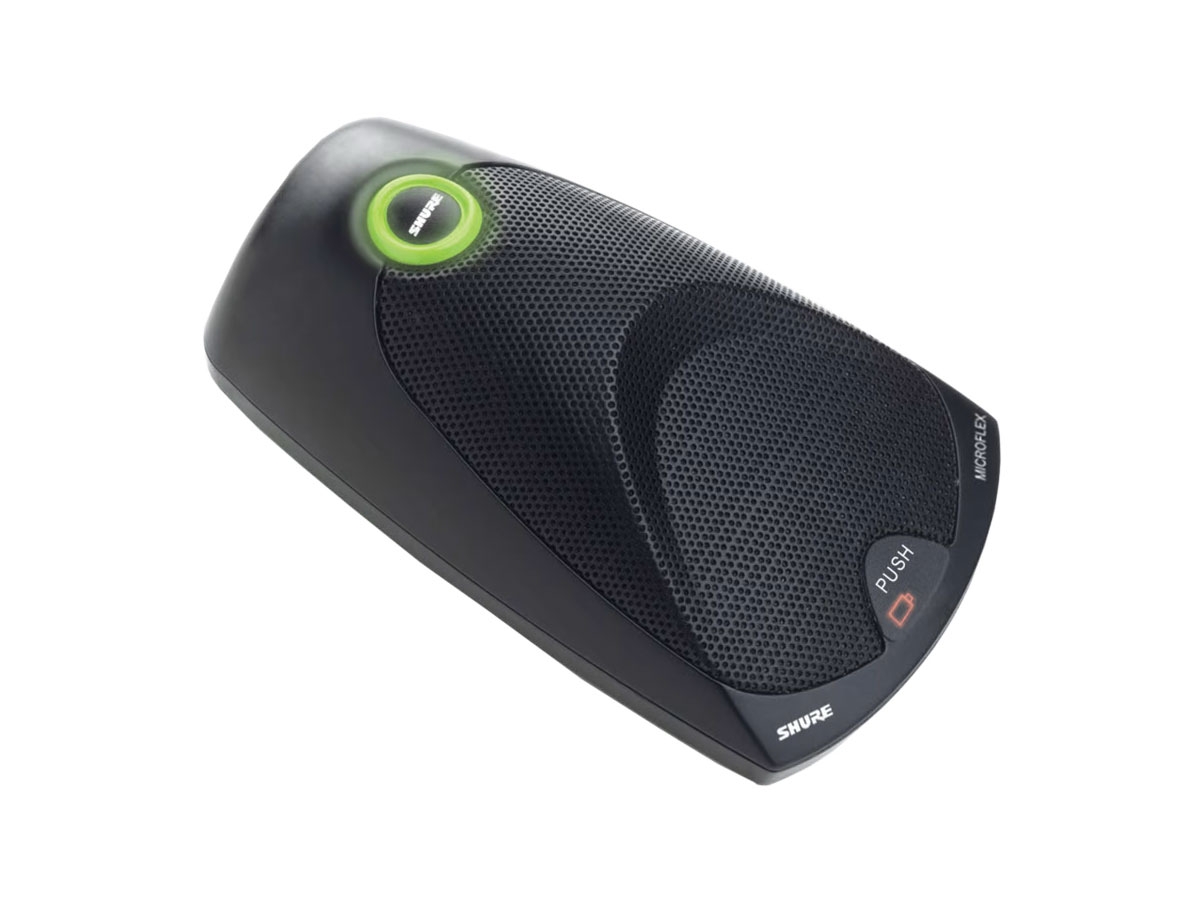

Name: SHURE MX690 - Wireless Boundary Microphone
Brand: Shure
Availability: InStock

Wireless Boundary Microphone

The MX690 Microflex Wireless Boundary microphone offers total freedom of placement with no holes to drill or cables to run for installation. It is the perfect solution for conference and meeting spaces where users demand flexibility and high performance. Compatible with Shure SLX wireless systems, including the SLX4L receiver with logic output for applications requiring logic functionality.

Brand: Shure

Product Code:MX690

Wish List
Compare

FEATURES

Sleek, low profile design
Frequency agile, microprocessor controlled transmitter
Bi-color status indicator
IR link to SLX receiver for automatic frequency synchronization
Programmable mute function
Battery level indicator
Operates on two AA batteries
Logic output for remote LED and mute control (SLX4L)
CommShield Technology for improved RF filtering

Application: Conference, Discussion
Environments: Club, Conference Room, Corporate Presentation, Auditorium, Lecture Hall, Live Performance, Place of worship, Rehearsal Space, Theater Stage

Show More Show Less

Working Range (Line of Sight): 30 m (100 ft)

Note: Actual range depends on RF signal absorption, reflection and interference.Note: Actual range depends on RF signal absorption, reflection and interference.

Frequency Stability: ±10 ppm
Modulation: FM, 45 kHz max. deviation
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Power Consumption (@3 V)

Display backlight on	220 mA, ±30 mA
Display backlight off	175 mA, ±30 mA

Power Consumption (X4, X7) @3 V

Display backlight on	245 mA, ±30 mA
Display backlight off	200 mA, ±30 mA

Battery Life: >8 hours (alkaline)
Operating Temperature Range: -18°C (0°F) to +57°C (135°F)

Note: Battery characteristics may limit this range.

Dimensions: 43 mm x 87 mm x 148 mm (H x W x D)
Weight

	MX690	MX890
Net	319 g (11.2 oz.)	312 g (11 oz.)
Packaged	516 g (18.2 oz.)	530 g (18.7 oz.)

SHURE MX690

User Guide & Specs

Spec Sheet

CAD

Brochure
