SHURE MXA710

SHURE MXA710

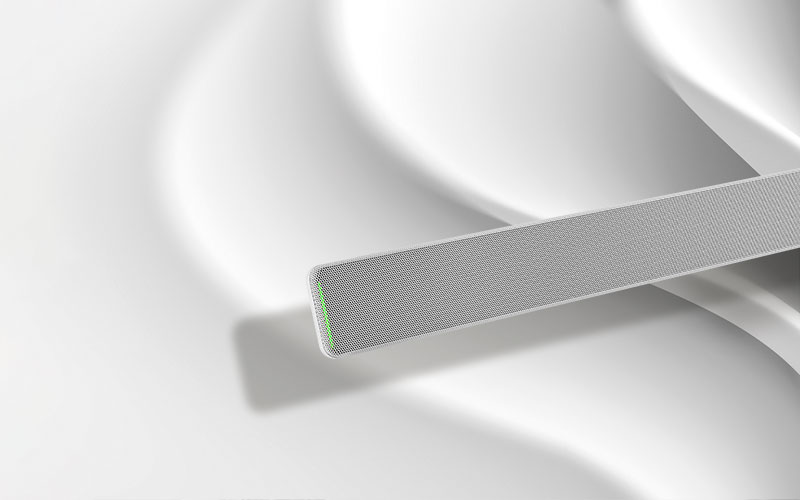

Linear Array Microphone
The MXA710 Linear Array Microphone represents the next evolution in Shure array microphone technology, designed for high-quality audio capture in premium AV conferencing environments. The sleek, linear form factor of the MXA710 allows for placement virtually anywhere in a meeting space, including on a wall, around a display, ceiling, or into a conference room table. Available in two lengths and three colors, the MXA710 includes proprietary Shure IntelliMix® DSP and Autofocus™ technology that provides all the processing needed for echo and noise-free conference audio
Brand:
Product Code:MXA710
With a sleek design available in two sizes and three colors, the MXA710 linear array provides high quality audio capture for AV conferencing without sacrificing aesthetics of today’s modern spaces. Time-saving deployment with seamless connectivity to the broader Shure networked systems product ecosystem.

Collaboration re-imagined

With Steerable Coverage™ and onboard IntelliMix digital signal processing, you can capture every voice. Patent-pending Autofocus™ technology fine-tunes the audio pickup in real time, for consistent sound even if participants shift in their seats.
Well Connected

Intuitive, programming-free LED mute sync functionality with leading third-party software codecs solutions including Zoom Rooms, Microsoft Teams and Cisco and Skype for Business when connected to the IntelliMix® P300 or ANIUSB-MATRIX Audio Network Interface.
Enterprise-wide Deployment

Unprecedented flexibility to meet varying room requirements from small to large, the MXA710 provides premium audio capture at scale that’s easier than ever to configure with Shure Designer software.
Encryption

Shure Audio Encryption can be enabled when used with the IntelliMix P300 Audio Conferencing Processor or Shure Audio Network Interfaces, which utilizes AES-256 encryption to protect confidential content.

Wide variety of available installation accessories for flexible mounting, including:

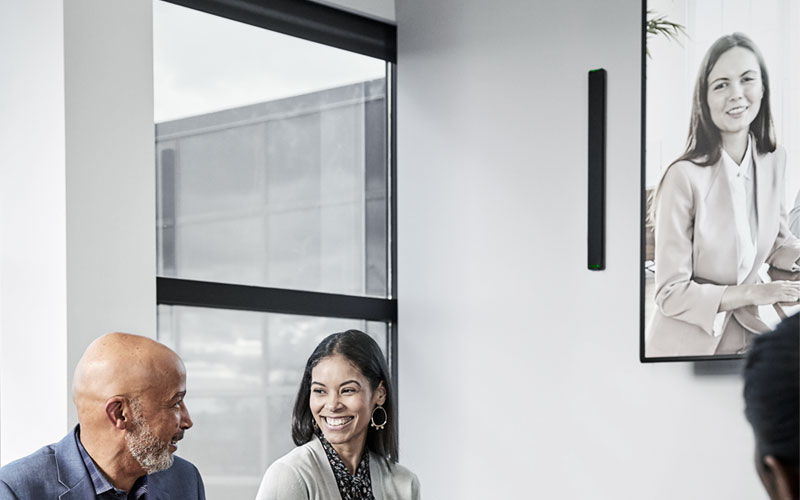

Wall mount: horizontal or vertical orientation, either on or flush to wall surface

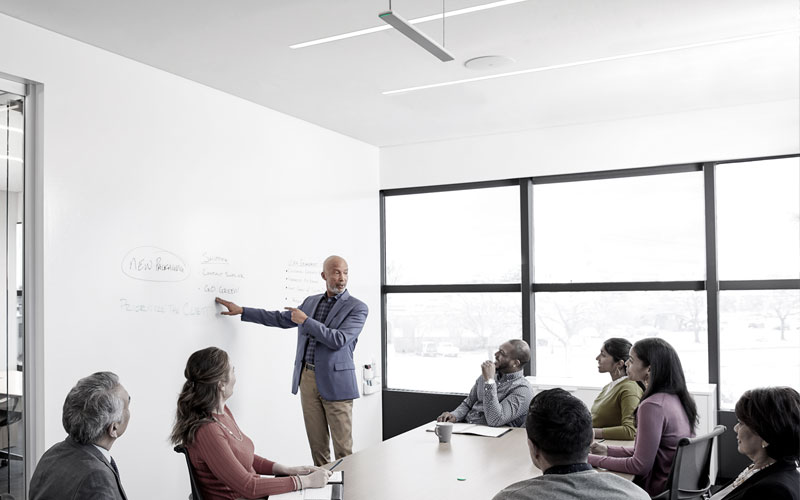

Ceiling mount: on ceiling, suspended, or flush
Table: flush with table surface
A710-DS desktop stand for placement on credenza or shelf
A710-MSA mic stand adapter for use with microphone stand
Available in two sizes - 2 ft (60 cm) and 4 ft (120 cm) and three colors (white, black, aluminum)
Dante Domain Manager / Device Lock compatible
UL 2043 plenum rated and IP5X rated
Dual LED status bars with configurable colors and brightness
GENERAL
All specifications measured from narrow lobe width. Values for all widths are within ± 3 dB of these specifi cations unless otherwise noted.
Lobe Width (adjustable): Narrow 30 degrees, Medium 40 degrees, Wide 70 degrees
Connector Type: RJ45
Power Requirements: Power over Ethernet (PoE), Class 0
Power Consumption: 10 W maximum
Control Software: Shure Designer
Plenum Rating: UL2043 (Suitable for Air Handling Spaces)
Dust Protection: IEC 60529 IP5X Dust Protected
WEIGHT:
MXA710-2FT 2 lbs (0.91 kg)
MXA710-4FT 3.7 lbs (1.67 kg)
PRODUCT DIMENSIONS:
MXA710-2FT 0.87 x 2.36 x 25.04 in. (22.09 x 60 x 636 mm) H x W x L
MXA710-4FT 0.87 x 2.36 x 49.12 in. (22.09 x 60 x 1247.76 mm) H x W x L

Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)

AUDIO
Frequency Response: 100 Hz to 20 kHz
AES67 or Dante Digital Output
Channel Count MXA710-2FT 6 total channels (4 independent transmit channels, 1 Automix output, 1 AEC reference in channel)
MXA710-4FT 10 total channels (8 independent transmit channels, 1 Automix output, 1 AEC reference in channel)
Sampling Rate 48 kHz
Bit Depth 24
Sensitivity at 1 kHz:
MXA710-2FT -7.4 dBFS/Pa
MXA710-4FT -7.9 dBFS/Pa
Maximum SPL Relative to 0 dBFS overload:
MXA710-2FT 101.4  dB SPL
MXA710-4FT 101.9  dB SPL
Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz): 71.2 dB A-weighted
Latency (Does not include Dante latency)
Direct Outputs 8.7 ms
Automix output (Includes IntelliMix processing) 19.3 ms
Self Noise:
MXA710-2FT 22.9 dB SPL-A
MXA710-4FT 22.8 dB SPL-A
Dynamic Range:
MXA710-2FT 78.5  dB
MXA710-4FT 79.1  dB
Built-in Digital Signal Processing: Automatic mixing, Acoustic Echo Cancellation (AEC), Noise Reduction, Automatic Gain Control, Compressor, Delay, Equalizer (4-band Parametric), Mute, Gain (140 dB range)
