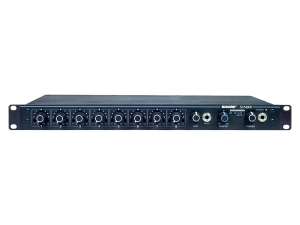

This eight-channel automatic mixer features the Shure patented IntelliMix®, which activates only microphones being addressed, minimizing poor audio caused by multiple open microphones.
The SCM810 is designed specifically for installed sound applications.
Features include adjustable EQ per channel, 48 V phantom power, active balanced microphone - or line-level inputs, line-level outputs, highly RF resistant chassis and circuitry, complete logic control of microphone activation, linking capacity for up to 400 microphones, with an internal power supply. 120/230 Vac power.
- Frequency response: 50 Hz to 20 kHz; +_ 2dB; -3 dB corner at 25 Hz
- Input clipping level: Mic: -15 dBV; Line: +22 dBV; Aux: +22 dBV ; Send/Return: +18 dBV
- Output clipping level: Line: +18 dBV; Headphones: +12 dBV; Direct Out: +18 dBV; Send/Return: +18 dBV
- Total harmonic distortion: <0.1% at + 18 dBv output level, 50 Hz to 20 kHz (through 20 Hz - 20 kHz filter; input 1 and master at 5, all other controls full counterclockwise)
- Common mode rejection: >70 dB at 1 kHz
- Polarity: Mic/Line, Send inputs to all outputs are non-inverting;
- Aux input to all outputs is inverting
- Input channel activation : attack time: 4 ms; hold time: 0.4 s (switchable to 1.0 s – scm810 only); decay time: 0.5 s
- Off attenuation: 15 dB (switchable to ∞)
- Equalization:
- - Low-frequency: 6 dB/octave cut, adjustable corner from 25 to 320 Hz
- - High-frequency: +_ 6 dB at 5 kHz, +_ 8 dB at 10 kHz, shelving
- Limiter: Type: Peak; Threshold: switchable: off, +4, +8, +16 dBu output
- Phantom power: 48 Vdc open-circuit through 6.8 kΩ series resistance
- Operating voltage: 230 Vac, 50 Hz
- Microphone logic control pins:
- - External voltage supply required: 5 vdc, 100 ma
- - Logic output current sinking ability: 500 ma
- Overall dimensions: 44.5 mm H x 483 mm W x 317 mm D (1 3/4 x 19 x 12 1/2 inches)
- Net weights: 4.3 kg (9.9 lbs)
