Behringer Eurocom MA6018
Behringer Eurocom MA6018
Behringer Eurocom MA6018
Behringer Eurocom MA6018
Behringer Eurocom MA6018
Behringer Eurocom MA6018
Behringer Eurocom MA6018

Behringer Eurocom MA6018

Ampli có Auto Mix

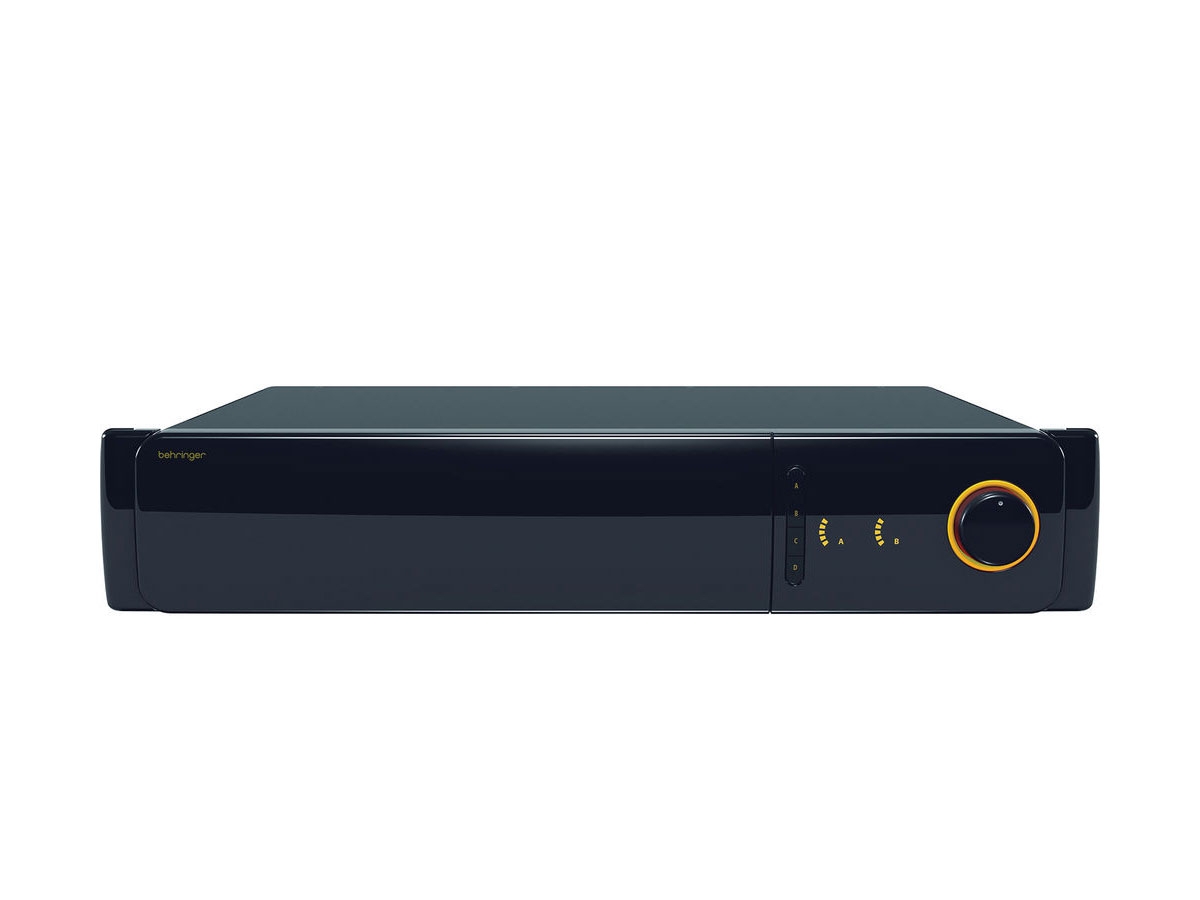

The EUROCOM MA6018 Auto-Mixing Amplifier from Behringer allows you to distribute audio to speakers in two different zones and page listeners within those zones. This unit also allows for the installation of hybrid multi-zone systems combining distributed music and low-impedance speakers because it is driven by two independent Class-D mono amplifiers. The first amplifier operates with a standard low impedance output while the second features a selectable output voltage of 70 or 100 volts.
Hãng sản xuất:
Mã sản phẩm:MA6018
MODEL Behringer Eurocom MA6018
Audio Inputs
8x Combo XLR/TRS mic/line
8x 5-Pin Euroblock mic/line (in parallel)
4x Stereo summed RCA auxiliary
1x 4-Pin Euroblock page input
Input Impedance
Mic: -50 to 0 dBV @ 600 Ω (electronically balanced)
Line: -27 to 0 dBV @ 600 Ω (electronically balanced)
Auxiliary : -10 dBV @ 10 kΩ (unbalanced)
Preamp Output
70 V Input:
1x 5-Pin Euroblock
Impedance: 0 dBV @ 600 Ω (balanced)

4 Ω Input:
1x 5-Pin Euroblock
Impedance: 0 dBV @ 600 Ω (balanced)

Hi-Z & Lo-Z Preamp Output:
2x 5-Pin Euroblock
Impedance: 0 dBV @ 600 Ω (balanced)
Phantom Power
24 VDC
Switchable on inputs 1 to 8 and Tel/Page input
Audio Outputs
Amplifier Output: 1x 4-Pin female Euroblock
Lo-Z Output: 2x terminals @ 4 Ω
Hi-Z: 2x terminals @ 70/100 V (switchable)
Direct Out: 8x 5-Pin Euroblock
Z2/MOH Output: 1x 5-Pin Euroblock
Output Impedance
0 dBV @ 600 Ω (balanced)
Dynamic Range
Mic: 65 dB
Line: 80 dB
THD & Noise
0.5% @ 1 kHz (rated output)
Frequency Response
50 Hz to 18 kHz (± 2 dB)
Tone Controls
Master:
Low: ± 10 dB @ 100 Hz
High: ± 10 dB @ 12 kHz

Inputs 1 to 8:
Low: ± 15 dB @ 100 Hz
High: ± 15 dB @ 12 kHz
Channels
Lo-Z: 1x 4 Ω (minimum)
Hi-Z: 1x 70/100 V (switchable)
Power Output
Lo-Z: 180 W RMS @ 4 Ω (minimum, 1% THD @ 1 kHz sine wave)
Hi-Z: 180 W RMS (27 Ω minimum @ 70 V, 55 Ω minimum @ 100 V; 1% THD @ 1 kHz sine wave)
Connections
Remote: 1x 5-Pin Euroblock
Common: -5 VDC @ 100 mA (short-circuit protected)
Remote Power: 5 VDC @ 100 mA (current limited, short-circuit protected)
RVC: 10 kΩ linear taper potentiometer
Aux Input Select: used in conjunction with wall remote to select aux feed
Power On/Off: 5 VDC voltage make contact input, no open voltage
Inputs 1 to 8: no voltage make contact input; open voltage 5 VDC, short circuit < 10 mA
Indicators
Power: Yellow LED ring illumination
Overload: Red LED ring illumination
Output Level: LED VU meter (yellow and red when clipping)
Power Supply
Mains Voltage: 100 to 120/220 to 240 VAC, 60/50 Hz (switchable)
Mains Connector: Standard IEC receptacle
Fuse: T 6.3 AH 250 V/T 3.15 AH 250 V
Power Efficiency: 72% maximum
Power Consumption
Idle: 54 W
1/8 Power: 110 W
1/3 Power: 210 W
Full Power: 500 W
Dimensions
3.5 x 17.0 x 16.0" (8.8 x 43.2 x 40.6 cm)
Weight
14.1 lb (6.4 kg)
Package Weight
17.4 lb
Box Dimensions (LxWxH)
22.5 x 16.9 x 8.1"
