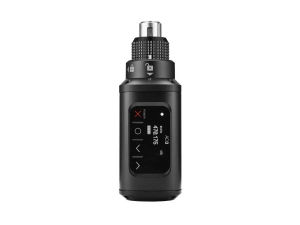

SHURE AD3

Name: SHURE AD3 - Axient® Digital Plug-On Wireless Transmitter
Brand: Shure
Availability: InStock

Axient® Digital Plug-On Wireless Transmitter

Gather and report news. Capture audio for film and television. Secure all the comments from the interview. But do so with impeccable audio quality and RF performance while taking advantage of wide-tuning and encryption with an Axient Digital plug-on transmitter. Take any wired microphone and make it wireless for any number of reasons and purposes. Axient Digital AD3 plug-on wireless transmitter. Portable, professional quality.

Brand: Shure

Product Code:AD3

Wish List
Compare

The Axient Digital AD3 plug-on transmitter transforms any microphone into an advanced, portable Axient Digital AD Series wireless microphone, delivering impeccable audio quality and RF performance, wide-tuning, and encryption features. Compatible with Axient Digital AD4D and AD4Q receivers in Standard or High Density modes, AD3 features a custom, fast, and secure XLR connector design, support for both AA and Shure SB900-series rechargeable battery options, and simple, user-friendly controls and menus. The AD3 is housed in a lightweight, rugged, metal chassis and is designed to resist sweat, moisture, and debris.

FEATURE

Axient Digital plug-on wireless transmitter
Patent-pending locking XLR connector for secure, wobble-free connection
OLED display with easy-to-navigate menu and controls
Rugged metal construction that is resistant to dust and moisture
Automatic input staging optimizes gain setting
AES 256-bit encryption-enabled for secure transmission
300 feet (100 meter) line-of-sight operating range
Selectable modulation modes optimize performance for spectral efficiency
- Standard – Optimal coverage, low latency
- High density – Dramatic increase in max system channel count
Switchable power levels (2/10/35 mW, region dependent)
AA battery (included) or Shure SB900B rechargeable battery (sold separately) options
Optional Shure SB900B lithium-ion rechargeable battery option provides up to 8 hours of continuous use, precision metering, and zero memory effect
External power and charging option over USB-C port
Switchable phantom power (off, +12V, +48V)
Included: 2 x AA alkaline batteries, USB-A to USB-C cable, belt clip/pouch, and zippered bag for storage

Show More Show Less

Mic Offset Range: -12 to 21 dB (in 1 dB steps)
Battery Type: Shure SB900 series Rechargeable Li-Ion or LR6 AA batteries 1.5 V
Battery Runtime (@ 10 mW)

Shure SB900B	> 8 hours
alkaline	> 7 hours

Dimensions: 126 mm x 44.5 mm x 44.5 mm (5.0in. x 1.8in. x 1.8 in.) H x W x D
Weight

Without Battery	240 g (8.0 oz.),
with AA batteries	263 g
with Shure rechargeable battery	280 g

Housing: Cast Metal
Operating Temperature Range: -10°C (-14°F) to 50°C (122°F)

Note: Battery characteristics may limit this range.

Storage Temperature Range: -40°C (-40°F) to 74°C (165°F)

Note: Battery characteristics may limit this range.

Audio Input

Connector: 3-pin female XLR
Configuration: balanced
Impedance

Pad-12 dB	26.64 kΩ
0 dB	6.64 kΩ
Boost12 dB	6.64 kΩ

Maximum Input Level (1 kHz at 1% THD)

Pad-12 dB	21 dBV
0 dB	9 dBV
Boost12 dB	-3 dBV

Preamplifier Equivalent Input Noise (EIN) (System Gain Setting ≥ +20): -115 dBV, A-weighted, typical
Phantom Power: +48 V(7 mA maximum) , +12 V(15 mA maximum)
High Pass Filter: Two-pole (12 dB per octave), cut off frequency selectable from 40 to 240 in 20 Hz increments

RF Output

Antenna Type: Dipole
Impedance: 50 Ω
Occupied Bandwidth: <200 kHz
Channel-to-Channel Spacing

Standard Mode	350 kHz
High Density Mode	125 kHz

varies by region

Modulation Type: Shure Axient Digital Proprietary
Power: 2 mW, 10 mW, 35 mW
Specific Absorption Rate (SAR): < 0.12 W/kg
