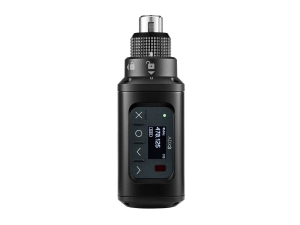

SHURE ADX3
Axient® Digital Plug-On Transmitter with ShowLink®
Leave the boom mic, plant mic, and interview mic exactly where they are and make necessary transmitter adjustments from the convenience of your cart, bag, camera, or truck. Axient Digital ADX3 plug-on transmitter with ShowLink provides comprehensive, real-time control of all transmitter parameters from the mix position. ADX3 plug-on transmitter features a secure XLR connector design, support for both Shure SB900-series rechargeable and AA batteries, and simple, user-friendly controls and menus.
Viewed112 times
Plug-on. Stay put.
- Axient Digital ADX Series wireless plug-on transmitter
- ShowLink enabled for comprehensive, real-time control of all Axient Digital transmitter parameters from the mix position
- Patented locking mechanism for secure, wobble-free connection
- OLED display with easy-to-navigate menu and controls
- Rugged metal construction that is resistant to dust and moisture
- Automatic input staging optimizes gain setting
- AES 256-bit encryption-enabled for secure transmission
- 300 feet (100 meter) line-of-sight operating range
- Selectable modulation modes optimize performance for spectral efficiency:
- Standard – Optimal coverage, low latency
- High density – Dramatic increase in max system channel count
- Switchable power levels (2/10/35 mW, region dependent)
- Shure SB900 rechargeable battery (included) or AA battery (sold separately) options
- Shure SB900 lithium-ion rechargeable battery option provides up to 8 hours of continuous use, precision metering, and zero memory effect
- External power and charging option over USB-C port
- Included: 2 x SB900B batteries, USB-A to USB-C cable, belt clip/pouch, and zippered bag for storage
Mic Offset Range –12 to 21 dB (in 1 dB steps)
Battery Type Shure SB900-series rechargeable
li-ion or LR6 AA batteries 1.5 V
Battery Runtime
@ 10 mW
Shure SB900B: >6 hours
Alkaline: >5 hours
Dimensions 5.0 × 1.8 × 1.8 in.
(126 × 44.5 × 44.5 mm)
Weight
240 g (8.0 oz), without batteries
263 g (9.2 oz), with AA Batteries
280 g (9.8 oz), with SB900B
Housing Cast metal
Operating Temperature
Range
–14 to 122 °F (–10 to 50 °C)
Note: battery characteristics may limit
this range
Storage Temperature
Range
–40 to 165 °F (–40 to 74 °C)
Note: battery characteristics may limit
this range
AUDIO INPUT
Connector 3-pin female XLR
Configuration balanced
Impedance
Pad (–12 dB): 26.64 kΩ
0 dB: 6.64 kΩ
Boost (12 dB): 6.64 kΩ
Maximum input Level
1 kHz at 1% THD
Pad (–12 dB): 21 dBV
0 dB: 9 dBV
Boost (12 dB): –3 dBV
Preamplifier Equivalent
Input Noise
System Gain Setting ≥+20
–115 dBV
A-weighted, typical
Phantom Power +48 V (7 mA maximum)
+12 V (15 mA maximum)
High Pass Filter Two-pole (12 dB per octave), cutoff
frequency selectable from 40 to 240
Hz in 20 Hz increments
RF OUTPUT
Antenna Type Dipole
Impedance 50 Ω
Occupied Bandwidth <200 kHz
Channel-to-Channel
Spacing
Standard Mode: 350 kHz
High Density Mode: 125 kHz
Modulation Type Shure Axient Digital Propietary
Power 2 mW, 10 mW, 35 mW
Varies by region. See Frequency Range and
Output Power Table.
Specific Absorption Rate
(SAR)
<0.1 W/kg
SHOWLINK®
Network Type IEEE 802.15.4
Antenna Type Dipole
Frequency Range 2.4000 to 2.4835 GHz (16 Channels)
RF output Power 10 dBm (ERP)
Varies by region
Battery Type Shure SB900-series rechargeable
li-ion or LR6 AA batteries 1.5 V
Battery Runtime
@ 10 mW
Shure SB900B: >6 hours
Alkaline: >5 hours
Dimensions 5.0 × 1.8 × 1.8 in.
(126 × 44.5 × 44.5 mm)
Weight
240 g (8.0 oz), without batteries
263 g (9.2 oz), with AA Batteries
280 g (9.8 oz), with SB900B
Housing Cast metal
Operating Temperature
Range
–14 to 122 °F (–10 to 50 °C)
Note: battery characteristics may limit
this range
Storage Temperature
Range
–40 to 165 °F (–40 to 74 °C)
Note: battery characteristics may limit
this range
AUDIO INPUT
Connector 3-pin female XLR
Configuration balanced
Impedance
Pad (–12 dB): 26.64 kΩ
0 dB: 6.64 kΩ
Boost (12 dB): 6.64 kΩ
Maximum input Level
1 kHz at 1% THD
Pad (–12 dB): 21 dBV
0 dB: 9 dBV
Boost (12 dB): –3 dBV
Preamplifier Equivalent
Input Noise
System Gain Setting ≥+20
–115 dBV
A-weighted, typical
Phantom Power +48 V (7 mA maximum)
+12 V (15 mA maximum)
High Pass Filter Two-pole (12 dB per octave), cutoff
frequency selectable from 40 to 240
Hz in 20 Hz increments
RF OUTPUT
Antenna Type Dipole
Impedance 50 Ω
Occupied Bandwidth <200 kHz
Channel-to-Channel
Spacing
Standard Mode: 350 kHz
High Density Mode: 125 kHz
Modulation Type Shure Axient Digital Propietary
Power 2 mW, 10 mW, 35 mW
Varies by region. See Frequency Range and
Output Power Table.
Specific Absorption Rate
(SAR)
<0.1 W/kg
SHOWLINK®
Network Type IEEE 802.15.4
Antenna Type Dipole
Frequency Range 2.4000 to 2.4835 GHz (16 Channels)
RF output Power 10 dBm (ERP)
Varies by region
- 2 SB900B Batteries
- 1 USB-A to USB-C Cable
- 1 Belt Clip/Pouch
- 1 Zippered Storage Bag
