SHURE ANI22

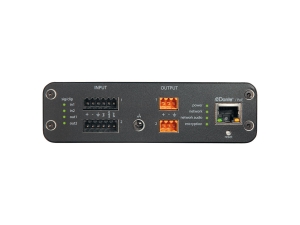

ANI22 Audio Network Interface

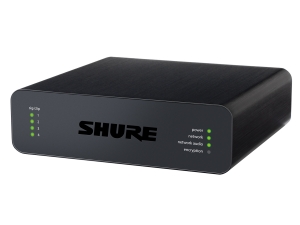

Audio network interface allows 2 analog mic or line inputs and 2 analog outputs to connect to a Dante network for easy audio routing and convenient browser-based remote control. Audio network interface complements the existing ANI4IN and ANI4OUT products.
Viewed85 times
- Converts up to 2 mic/line analog signals onto a Dante Network
- Converts up to 2 Dante digital audio signals to line/mic analog signals, ANI22BLOCK: Analog audio block connectors (2 in, 2 out); ANI22XLR: Analog audio XLR connectors (2 in, 2 out)
- Power-over-Ethernet (PoE) eliminates need for outboard power supply
- Compact form factor is easy to mount without equipment rack
More flexibility for every kind of application where it is required to get analog audio onto and from a Dante network: The ANI22 Audio Network Interface complements the existing ANI4IN and ANI4OUT products, and is available with XLR and block connectors. It brings up to two line / mic signals onto or from a Dante network for easy audio routing and convenient browser-based remote control.
- Inputs: (4) XLR connector
- Phantom Power (Selectable per channel): +48 V
- Logic Connections (Block connectors only): LED, Switch
- Polarity: Non-inverting, any input to any output
- Output: (1) RJ45
- Power Requirements: Power over Ethernet (PoE), Class 0
- Power Consumption: 10W, maximum
- Weight: 672 g (1.5 lbs)
- Dimensions (H x W x D): 4 x 14 x 12.8 cm (1.6 x 5.5 x 5.0 in.)
- Control Application: HTML5 Browser-based
- Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
Audio
- Frequency Response: 20 to 20,000 Hz
- Dante Digital Output: Channel Count: 4; Sampling Rate: 48 kHz; Bit Depth: 24
- Latency (Does not include Dante latency): 0.35 ms
- Analog Gain Range: Adjustable, in 3 dB steps, 51 dB
- Dynamic Range (Analog-to-Dante): 20 Hz to 20 kHz, A-weighted, typical, 113 dB
- Equivalent Input Noise (20 Hz to 20 kHz, A-weighted, input terminated with 150Ω)
- Analog Gain Setting= +0 dB: -93 dBV
- Analog Gain Setting= +27 dB: -119 dBV
- Analog Gain Setting= +51 dB: -130 dBV
- Analog Gain Setting= +27 dB: -119 dBV
- Analog Gain Setting= +51 dB: -130 dBV
- Total Harmonic Distortion (@ 1 kHz, 0 dBV Input, 0 dB analog gain): <0.05%
- Common Mode Rejection Ratio (150Ω balanced source @ 1 kHz): >70 dB
- Impedance: 5 kΩ
- Input Configuration: Active Balanced
- Input Clipping Level
- Analog Gain Setting= +0 dB: +20 dBV
- Analog Gain Setting= +27 dB: -7 dBV
- Analog Gain Setting= +51 dB: -31 dBV
- Analog Gain Setting= +27 dB: -7 dBV
- Analog Gain Setting= +51 dB: -31 dBV
- Built-in Digital Signal Processing:
- - Per Channel: Equalizer (4-band Parametric), Mute, Invert, Polarity, Gain (140 dB range)
- System: Audio Summing
Networking
Cable Requirements: Cat 5e or higher (shielded cable recommended)
