Shure DCA901
Broadcast Microphone Array
The DCA901 opens new possibilities for capturing sound in broadcast and media production. This compact digital broadcast microphone array delivers eight channels of high-fidelity audio through a single network cable. Steerable pickup zones isolate the sounds that matter while minimizing ambient noise. With built-in DSP, fewer cables, and faster setup, it replaces bulky analog systems while supporting experiential, story-driven sound and modern production workflows.
Brand: Shure
ModelDCA901
Turn Every Viewer into a Front Row Fan
- Capture up to eight isolated audio channels from a single broadcast array microphone
- Steerable lobes let you virtually adjust pickup zones, reducing mic count and eliminating the need to reposition gear
- A single Dante or AES67 connection delivers audio, power, and control, simplifying routing and minimizing failure points
- Built-in DSP handles EQ, compression, delay, and automixing, giving you more time to focus on creative sound design
- Actively supports REMI workflows and alternate feeds with flexible routing and remote lobe control
- Presets streamline deployments and ensure consistent configurations across shows or seasons
- Supports seamless 5.1 immersive capture and stereo conversion for both modern and legacy formats

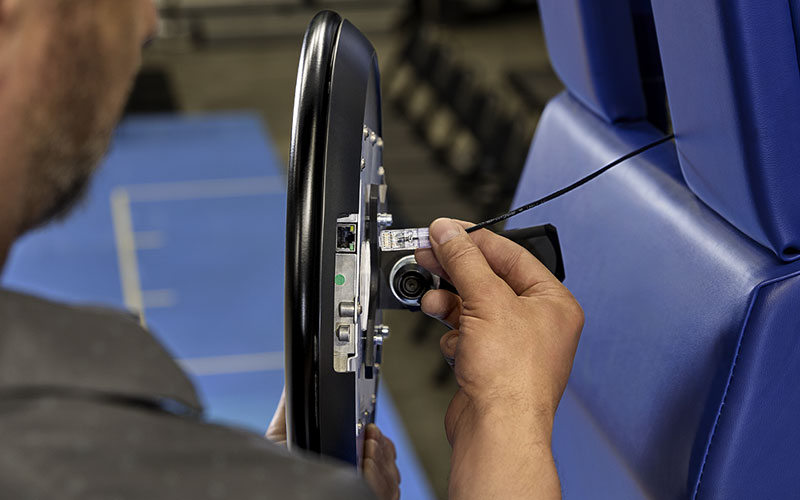

- Low profile design installs cleanly in stadiums, studios, or mobile setups and blends into camera-ready environments
Deploy Less. Capture More.
Shape Sound with Precision
Steerable lobes isolate the zones you want, minimizing ambient off-axis noise. Use Auto Position to quickly orient the lobe in your desired direction.Streamlined Infrastructure
One network cable carries audio, power, and control, simplifying routing and reducing risk.Simplify the Signal Chain
Internal DSP handles EQ, compression, delay, and automixing, reducing hardware needs and giving you more time to focus on sound design.Fast, Repeatable Setup
Save and recall presets to deploy faster and maintain consistency across broadcasts, venues, or events.
Quality That's In The Details
- Eight isolated pickup zones from one compact digital array
- Processes audio at the source for cleaner mixes and more efficient routing
- Captures experiential details that enhances fan experience and engagement
- One cable simplifies setup by delivering power, control, and audio
SPECIFICATIONS
GENERAL
Coverage Type Steerable
Power Requirements Power over Ethernet (PoE), Class 0
Power Consumption 10.1 W maximum
Control Software Browser-based web application
Cable Requirements Cat 5e or higher (shielded cable recommended)
Connector Type RJ45
MICROPHONE
Frequency Response 100 Hz to 20 kHz
AES67 or Dante Digital Output
Channel Count: 12 total channels: 8 channel outputs, 1 mono automix
output, stereo left and right automix outputs, and 1 PFL output
Sampling Rate: 48 kHz
Bit Depth: 24
Sensitivity at 1 kHz −36.4 dBFS/Pa
Maximum SPL
at 10% THD
500 Hz and higher: 130.4 dB SPL
250 Hz: 128 dB SPL
125 Hz: 120 dB SPL
63 Hz and lower: 118 dB SPL
Signal-To-Noise Ratio Ref. 94 dB SPL at 1 kHz
67.1 dB A-weighted
Latency
Not including Dante latency
Direct outputs : 13.5 ms
Automix outputs: 21.5 ms
Self Noise 26.9 dB SPL-A
Dynamic Range 103.5 dB
Built-in Digital Signal Processing Automatic mixing, noise reduction, compressor, delay,
equalizer (4-band parametric), mute, gain (140 dB range)
PHYSICAL SPECIFICATIONS
Dimensions
Height: 1.64 in. (41.66 mm)
Diameter: 13.5 in. (342.9 mm)
Smaller top diameter: 11.61 in. (294.89 mm)
Weight 5 lb. (2.3 kg)
Plenum Rating UL2043 (Suitable for Air Handling Spaces)
Dust Protection IEC 60529 IP5X Dust Protected
Operating Temperature Range −6.7°C (20°F) to 40°C (104°F)
Storage Temperature Range −29°C (-20°F) to 74°C (165°F
GENERAL
Coverage Type Steerable
Power Requirements Power over Ethernet (PoE), Class 0
Power Consumption 10.1 W maximum
Control Software Browser-based web application
Cable Requirements Cat 5e or higher (shielded cable recommended)
Connector Type RJ45
MICROPHONE
Frequency Response 100 Hz to 20 kHz
AES67 or Dante Digital Output
Channel Count: 12 total channels: 8 channel outputs, 1 mono automix
output, stereo left and right automix outputs, and 1 PFL output
Sampling Rate: 48 kHz
Bit Depth: 24
Sensitivity at 1 kHz −36.4 dBFS/Pa
Maximum SPL
at 10% THD
500 Hz and higher: 130.4 dB SPL
250 Hz: 128 dB SPL
125 Hz: 120 dB SPL
63 Hz and lower: 118 dB SPL
Signal-To-Noise Ratio Ref. 94 dB SPL at 1 kHz
67.1 dB A-weighted
Latency
Not including Dante latency
Direct outputs : 13.5 ms
Automix outputs: 21.5 ms
Self Noise 26.9 dB SPL-A
Dynamic Range 103.5 dB
Built-in Digital Signal Processing Automatic mixing, noise reduction, compressor, delay,
equalizer (4-band parametric), mute, gain (140 dB range)
PHYSICAL SPECIFICATIONS
Dimensions
Height: 1.64 in. (41.66 mm)
Diameter: 13.5 in. (342.9 mm)
Smaller top diameter: 11.61 in. (294.89 mm)
Weight 5 lb. (2.3 kg)
Plenum Rating UL2043 (Suitable for Air Handling Spaces)
Dust Protection IEC 60529 IP5X Dust Protected
Operating Temperature Range −6.7°C (20°F) to 40°C (104°F)
Storage Temperature Range −29°C (-20°F) to 74°C (165°F
