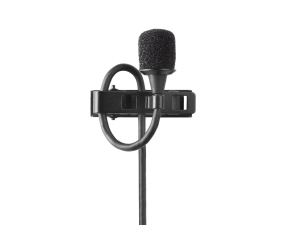

SHURE MX150
Subminiature Lavalier Microphone
Lavalier microphone provides uncompromised sound quality and high reliability with minimal visibility. It features CommShield technology to stop RF interference, user-changeable equalization caps, and a windscreen for wind protection.
8,856,000đ
Viewed836 times
The MX150B provides uncompromised sound quality and high reliability with minimal visibility for use in television broadcasting, corporate lectures, A/V teleconferencing, House of Worship, and sound reinforcement.
FEATURES
FEATURES
- CommShield® Technology guards against interference from cellular RF devices and digital bodypack transmitters
- Matte Black, sleek, low-profile design for inconspicuous placement
- Multi-position tie clip allows for a variety of placement options and features an integrated cable management system for convenient cable dress with minimized handling noise
- Kevlar-reinforced soft-flex cable design further reduces handling noise while providing superior flexibility for routing and placement
- User-changeable equalization caps for response shaping (omnidirectional only)
- Snap-fit, concise windscreen provides protection from plosives and wind noise with minimal visibility
- Legendary Shure quality, ruggedness, and reliability
- Transducer Type: Electret Condenser
- Frequency Response: 20 to 20,000 Hz
- Output Impedance: TQG : N/A
- Sensitivity (open circuit voltage, @ 1 kHz, typical): –51.0 dBV/Pa (3.0 mV)
- Maximum SPL (1 kHz at 1% THD)
- 2500 Ωload: 147.5 dB SPL
- 1000 Ωload: 147.5 dB SPL
- 1000 Ωload: 147.5 dB SPL
- Signal-to-Noise Ratio: TQG: 57.5 dB; XLR: 57.0 dB
- Dynamic Range (@1 kHz)
- - 2500 Ωload : TQG : 111.0 dB SPL; XLR : 97.5 dB SPL
- - 1000 Ωload: TQG : 111.0 dB SPL; XLR : 97.5 dB SPL
- Self Noise (equivalent SPL, A-weighted, typical):
- MX150/O: 34.0 dB
- MX150/C: 36.5 dB
- MX150/C: 36.5 dB
- Clipping Level (1 kHz at 1% THD)
- 2500 Ωload: TQG: 2.0 dBV; XLR: 1.0 dBV
- 1000 Ωload: TQG: 1.5 dBV; XLR : –4.5 dBV
- 1000 Ωload: TQG: 1.5 dBV; XLR : –4.5 dBV
- Common Mode Rejection (20 to 20,000 Hz)
- TQG: N/A
- XLR: >60 dB
- XLR: >60 dB
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
- Power Requirements: 5 V DC (0.04–0.18 mA)
- Weight: 21 g (0.7 oz.)
- Operating Temperature Range: -18°C (0°F) to 57°C (135°F)
- Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
Recently viewed
SHURE SLXD15/DL4B
Portable Wireless System With SLXD1 Bodypack Transmitter And DL4 Lavalier Microphone
Similar Products
Related Products

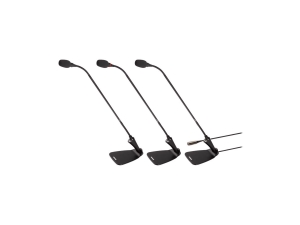

SHURE CVG18D
