SHURE MX202

SHURE MX202

Microflex Overhead

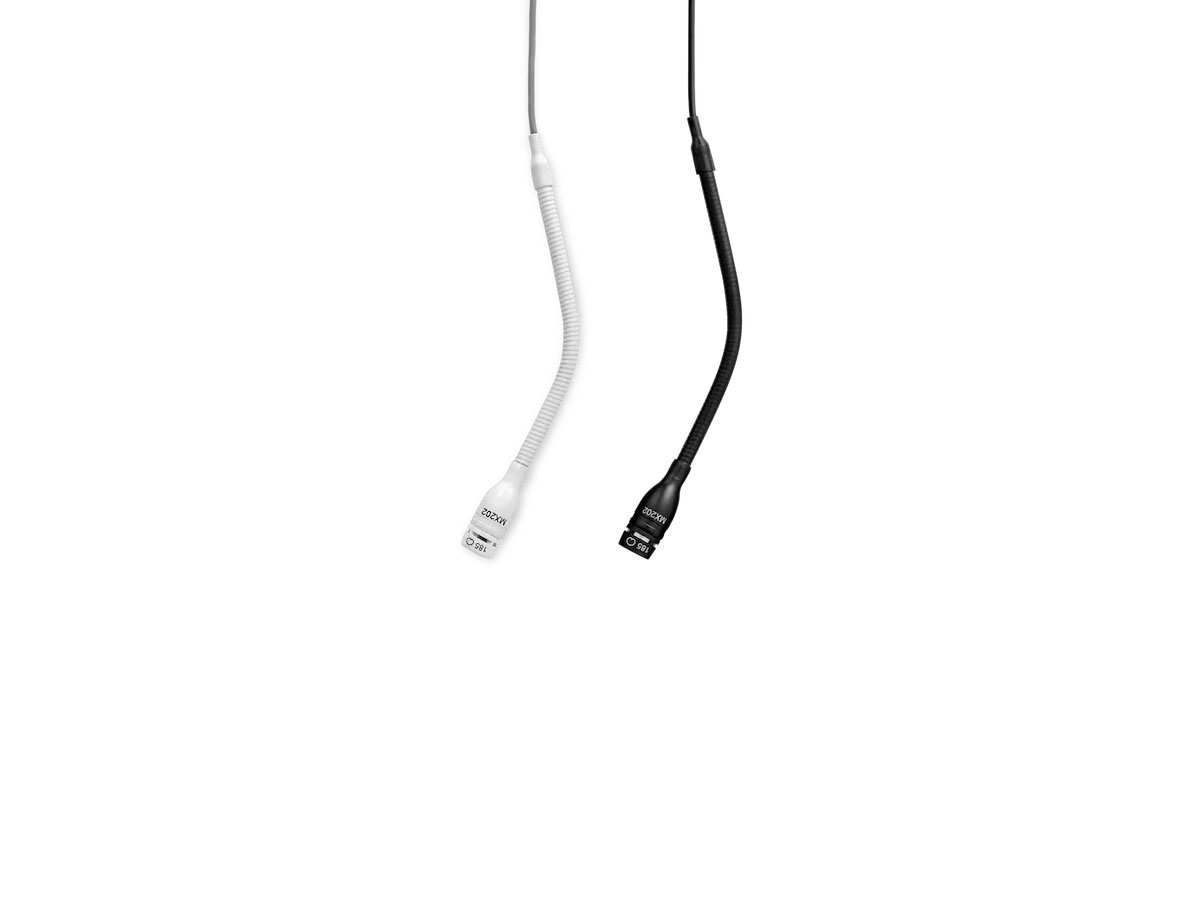

Overhead microphone delivers clear, accurate audio with interchangeable cartridges and an unobtrusive, bright white or black design.
Brand:
Product Code:MX202B/C
FEATURES
  • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
  • Interchangeable cartridges that provide an optimal polar pattern choice for each application
  • Supplied stand-mount adapter for portable applications (in-line preamplifier versions only)
  • Bright white or Black finish that blends unobtrusively with most surroundings
  • New RF filtering

It is hard to believe that such small, unobtrusive microphones can produce such great sound, but it's true. Available in black or bright white finishes, and with in-line or plate mount preamps, MX202 Microflex® Overhead condenser microphones capture high-quality sound in a compact, adjustable package. Each model features a choice of interchangeable cardioid or supercardioid condenser microphone cartridges attached to a flexible, four inch gooseneck with a 30 foot cable.

The preamp options available offer easy installation in ceilings or microphone stands, and when combined with the high sensitivity cartridge's wide frequency response, these microphones provide accurate sound reproduction with a minimum of RF interference or electromagnetic hum. The new Microflex Overheads feature interchangeable cardioid, supercardioid and omnidirectional condenser cartridges that fit every model in the Microflex product line for enhanced convenience and consistent sound.

  • Type: Electret Condenser
  • Frequency Response: 5017000 Hz
  • Polar Pattern





MX202B/C

Cardioid

MX202B/S

Supercardioid

MX202B/MS

Mini-shotgun

  • Output Impedance: 180 Ω
  • Output Configuration: Active Balanced
  • Sensitivity (@ 1 kHz, open circuit voltage)





Cardioid

−35 dBV/Pa (18 mV)

Supercardioid

−34 dBV/Pa (21 mV)

Mini-shotgun

-33 dBV/Pa (22 mV)

1 Pa=94 dB SPL

  • Maximum SPL (1 kHz at 1% THD, 1 kΩ load)





Cardioid

124 dB

Supercardioid

123 dB

Mini-shotgun

121 dB

  • Self Noise (A-weighted):





Cardioid

28 dB SPL

Supercardioid

27 dB SPL

Mini-shotgun

26 dB SPL

  • Signal-to-Noise Ratio (Ref. 94 dB SPL at 1 kHz)





Cardioid

66 dB

Supercardioid

68 dB

Mini-shotgun

68 dB

  • Dynamic Range 1 kΩ load, @ 1 kHz: 96 dB
  • Common Mode Rejection (10 Hz to 100 kHz): 45 dB, minimum
  • Clipping Level at 1% THD: −6 dBV (0.5 V)
  • Polarity





3-pin XLR

Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

  • Environmental Conditions





Operating Temperature

–1857°C (0135°F)

Storage Temperature

–2974°C (–20165°F)

Relative Humidity

095%

  • Power Requirements: Phantom Power 1152  V DC, 2.0 mA
