SHURE MX412
Engineered to capture and inspire.
- Gooseneck length: 12 inch (30.5 cm)
- Interchangeable cartridges provide the right polar pattern for every application
- Locking flange mount for permanently securing microphone to surfaces
- Snap-fit foam windscreen
- Shock mount provides over 20 dB isolation from surface vibration noise
- Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
- Balanced, transformerless output for increased immunity to noise over long cable runs
- New RF filtering
Interchangeable Cartridge
Designed for easy replacement and available in cardioid, supercardioid and omnidirectional polar patterns, the interchangeable cartridges offer wide frequency response and accurate sound reproduction for a broad variety of applications, such as houses of worship, courtrooms and conference centres. Plus, the condenser cartridges fit every model in the Microflex product line for enhanced convenience and consistent sound.
Available Options

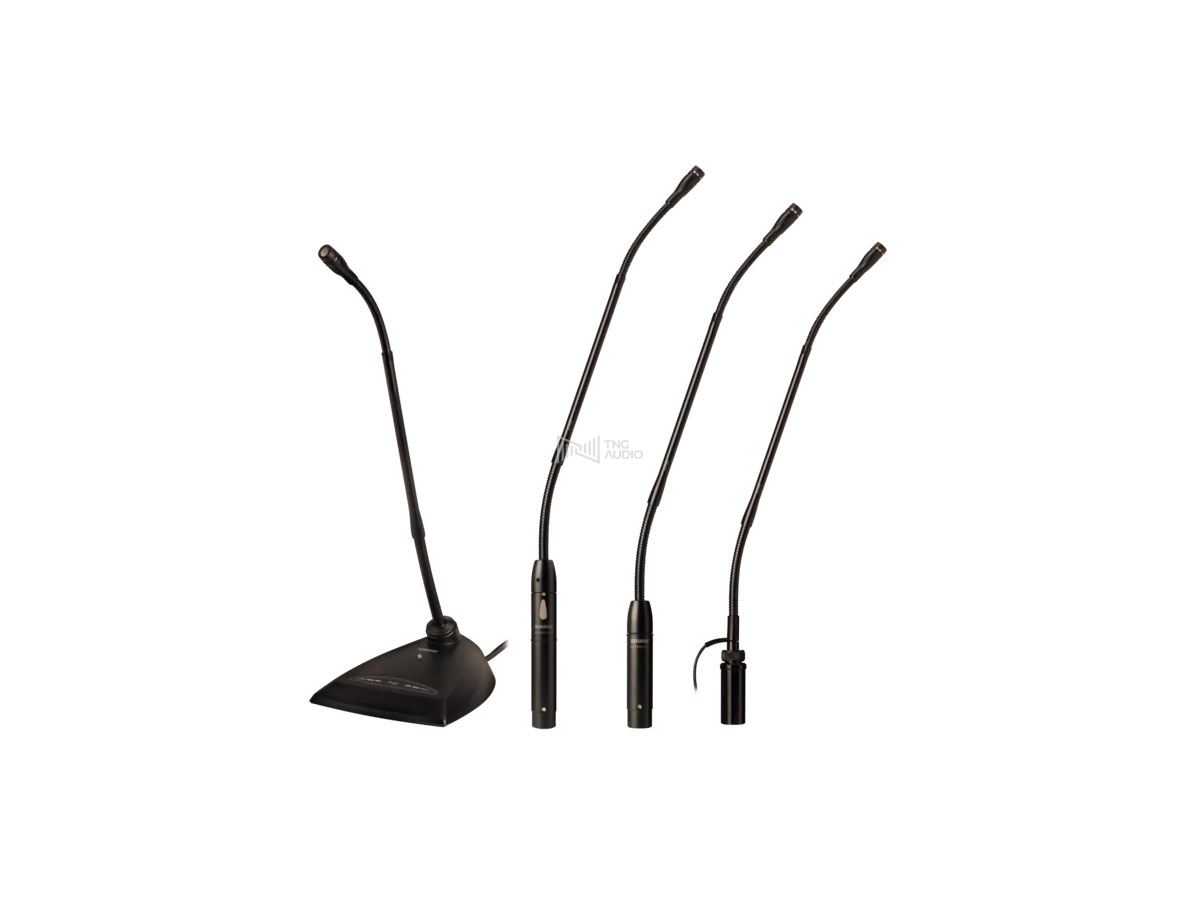

Microflex Gooseneck microphones are available in four models with a variety of heights and mounting styles to choose from. One model includes a silent mute switch with LED indicator, a Shure Microflex exclusive. And every Microflex Gooseneck features high sensitivity and balanced, transformerless output for maximum immunity to electromagnetic hum and RF interference, even over long cable runs. Each Microflex Gooseneck microphone comes with a complete installation kit, including locking metal and foam ball windscreens, snap-in and shock-mount microphone stand adapters.
HOW IT WORKS
The MX412 delivers the responsiveness to everything you want them to hear—and controls what you don’t. It’s great sound and reliable performance, without noise or distractions. Even installation was rethought and reengineered to be simpler and smoother for AV integration. Precise, tailored-for-speech audio for any size room.
WHY IT’S BETTER
QUALITY THAT’S IN THE DETAIL
- 12-inch gooseneck
- Low-profile design
- Dual-flex gooseneck provides easy mic adjustment
- Versions available with mute button, LED indicator, locking flange and shockmount assemblies
- Can mount on table, lectern, podium or similar surface
- Interchangeable cartridges ensure great audio in any environment
- Type: Electret Condenser
- Frequency Response: 50–17000 Hz
- Polar Pattern
MX412/C, MX418/C, MX424/C, MX412D/C, MX418D/C, MX412SE/C, MX418SE/C |
Cardioid |
MX412/S, MX418/S, MX424/S, MX412D/S, MX418D/S, MX412SE/S, MX418SE/S |
Supercardioid |
- Output Impedance: 180 Ω
- Output Configuration: Active Balanced
- Sensitivity @ 1 kHz, open circuit voltage:
Cardioid |
–35 dBV/Pa(18 mV) |
Supercardioid |
–34 dBV/Pa(21 mV) |
- Maximum SPL (1 kHz at 1% THD, 1 kΩ load)
Cardioid |
124 dB |
Supercardioid |
123 dB |
- Self Noise (A-weighted)
Cardioid |
28 dB SPL |
Supercardioid |
27 dB SPL |
- Signal-to-Noise Ratio (Ref. 94 dB SPL at 1 kHz)
Cardioid |
66 dB |
Supercardioid |
68 dB |
- Dynamic Range (1 kΩ load, @ 1 kHz): 96 dB
- Common Mode Rejection (10 Hz to 100 kHz): 45 dB, minimum
- Clipping Level at 1% THD: –6 dBV (0.5 V)
- Polarity: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
- Mute Switch (MX412S/MX418S): –50 dB minimum
- Environmental Conditions
Operating Temperature |
–18–57°C (0–135°F) |
Storage Temperature |
–29–74°C (–20–165°F) |
Relative Humidity |
0–95% |
- Power Requirements: 11–52 V DC, 2.0 mA
- 1 - 65B8264 Flange
- 1 - 65B8265 Retainer
- 1 - 80A439 Isolation Ring
- 1 - RK412WS Snap-fit Foam Windscreen (1 furnished, 4 in replacement kit)
- 1 - A400SM Shock Mount
- 1 - 80A67 Hex Wrench #4
