Shure MXA310
Table Array Microphone
Features Steerable Coverage™ of 4 separate polar patterns, plus the new toroid polar pattern, which rejects overhead HVAC and fan noise. Intuitive user interface allows for easy configuration of presets, templates and polar patterns.
Brand: Shure
Product Code:MXA310
The clearest way to conference.
Audio Capture / DSP
- Up to four simultaneous polar patterns including the innovative “toroid” pattern, capturing audio from table level while rejecting unwanted overhead artifacts (additional patterns include Omnidirectional, Cardioid, Supercardioid, Hypercardioid, and Bidirectional—all steerable to any angle in 15 degree increments)
- Shure DSP Utilities:
- Steerable Coverage Technology
- Automatic Mixing
- 4 Band C/S PEQ assignable to any one channel at a time
Software Control
- Browser-based control software that features a simple yet smart interface showing templates and varying polar patterns for all device parameters
- Stores 10 presets
Connectivity
- Dante Audio Networking, standard PoE (class 0), and Control carried on single Ethernet cable
- Control strings for third-party preset controllers including Crestron and AMX
Hardware / Installation
- Configurable multi-color LED
- Displays Mute and Unmute status in Ring, Segment or Automix in two colors (available in red, orange, yellow, green, blue, purple, white, pink)
- Brightness controls (default, dim, disabled)
- Mute Switch modes
- Toggle, Push-to-Talk, Push-to-Mute, Disable
- Backlit LED indicator of enabled/disabled mute switch
- Generates external control signal to mute a downstream device or trigger camera presets
- Available in white, black and aluminum
- CommShield® RF Immunity
- Cable exit along or through table allows for easy retrofitting of previous Shure MX396/MX395 boundary microphone installations
- Device Reboot/Factory Reset Options
- Two stage hardware reset: 4 second press resets network settings, 8 second press resets to factory default restoring all settings including device name and network details
The Microflex® Advance™ Table Array is a premium networked array microphone that captures high quality audio and provides flexibility in varying A/V Conferencing environments including boardrooms, huddle rooms and multi-purpose spaces. Within the onboard Shure DSP Utilities, Shure’s proprietary Steerable Coverage™ technology deploys up to four discrete simultaneous coverage zones around a table and utilizes an innovative “toroid” ring-shaped pattern to reject unwanted artifacts from overhead such as HVAC or projector fans.
Programmable capacitive-touch mute switches ensure simple user operation. Configurable multi-colored LED light ring displays mute status and displays lighted segments during set-up to confirm coverage areas and auto mix settings. Integrates seamlessly with Dante™ Networked Audio, and third-party preset controllers including Crestron and AMX. All parameters are configured via a browser-based control software, with intuitive control of polar patterns, templates and presets for quick set up for any meeting space requirement.
How It Works?

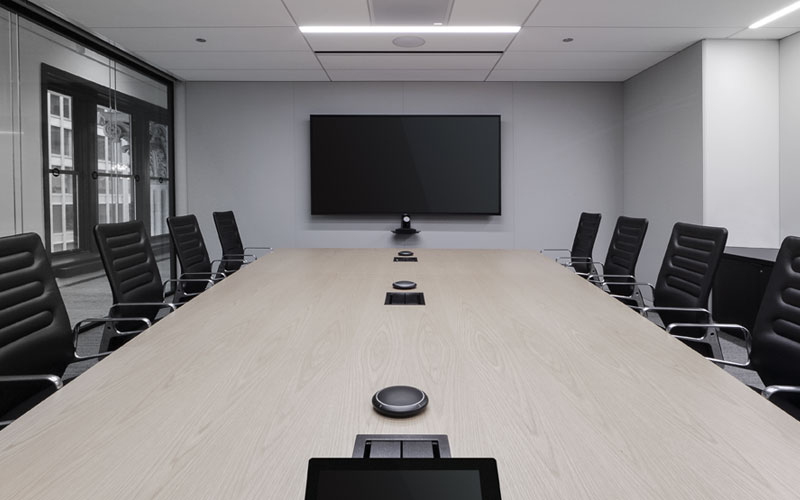

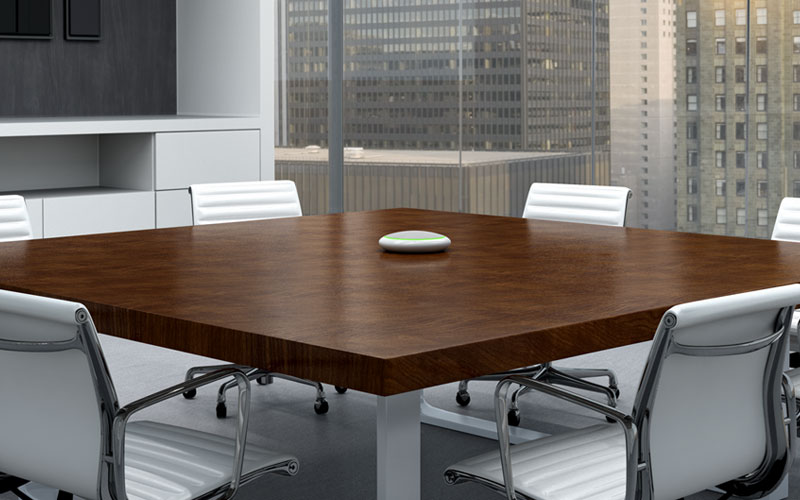

The MXA310 integrates smartly into any space. Boardrooms. Huddle rooms. Multi-purpose areas. You can ensure speech is captured accurately and reproduced intelligibly. With Steerable Coverage™ and a low profile design, it removes unnecessary clutter, giving you even more clarity.
Why It's Better?
Seamless integration
The MXA310 connects to the vast ecosystem of Shure and third-party networked audio devices via Dante or AES67, with just one cable for power, control and audio.
Focused conversation
With Steerable Coverage™ and built-in automatic mixing, you can capture every voice with pinpoint accuracy anywhere in the room.
No unwanted ambience
Office HVAC systems can add overpowering background noise to the call. The Shure-exclusive “toroid” polar pattern only captures table-level sound, helping to reduce unwanted distractions from fan or HVAC noise.
Dante™ integration
The MXA310 can easily connect to the vast ecosystem of Shure and third-party networked audio devices.
Encryption
Shure Audio Encryption can be enabled when used with the IntelliMix P300 Audio Conferencing Processor or Shure Audio Network Interfaces, which utilize AES-256 technology to protect confidential content.
Quality that’s in the Details

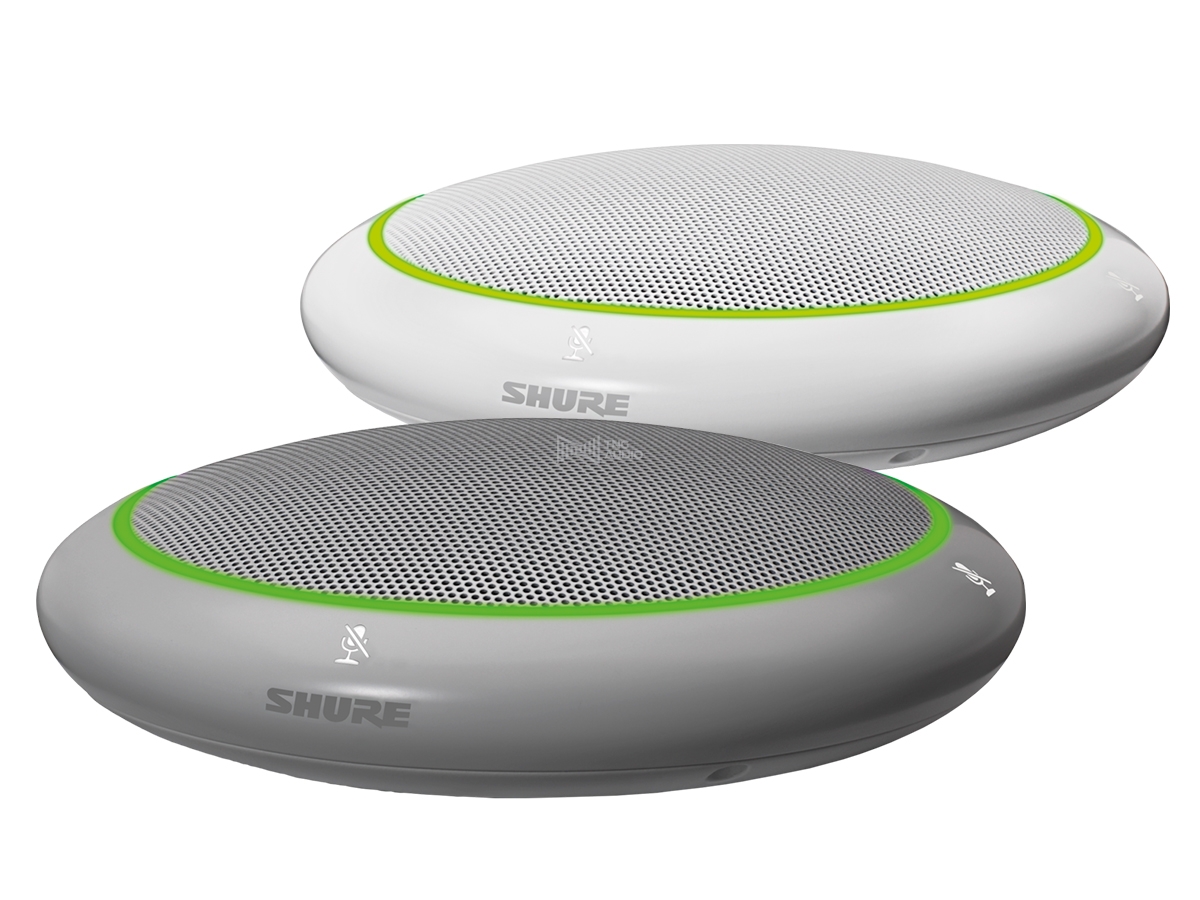

- Available in three colors (white, black, aluminum)

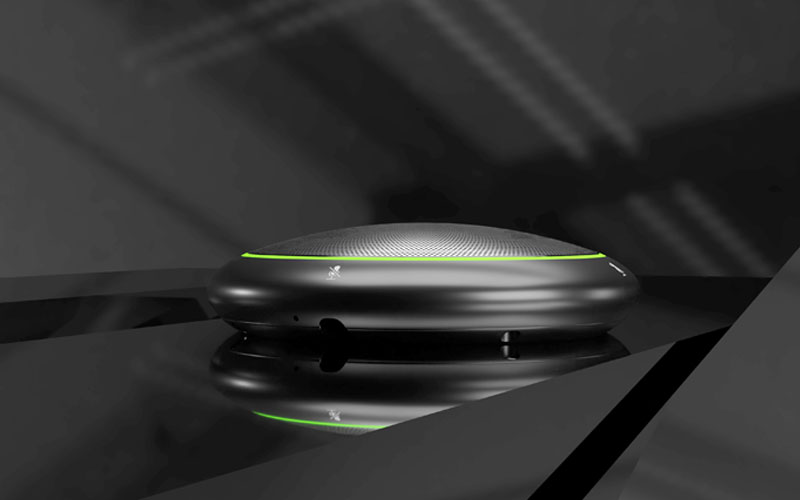

- LED light ring with configurable colors and brightness control
- Dante Domain Manager / Device Lock compatible.
- Programming-free LED mute sync with leading software conferencing solutions including Zoom Rooms, Microsoft Teams and Skype for Business (when used with IntelliMix P300 or ANIUSB-MATRIX)
- Discreet design integrates easily into your room with two mounting options: mounts on the table or A310-FM flush mount.
All specifications measured from cardioid polar pattern. Values for all patterns are within ± 3 dB of these specifications unless otherwise noted.
Polar Pattern (All channels independently adjustable): Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional
Connector Type: RJ45
Power Requirements: Power over Ethernet (PoE), Class 0
Power Consumption: 4W, maximum
Weight: 362 g (0.8 lbs)
Dimensions (H x W x D): 3.6 x 13.4 x 13.4 cm (1.4 x 5.3 x 5.3 in.)
Control application: HTML5 Browser-based
Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
Audio
Frequency Response: 100 to 20,000 Hz
Dante Digital Output:
- Channel Count 5 total channels (4 independent transmit channels, 1 Automatic mixing transmit channel)
- Sampling Rate: 48 kHz
- Bit Depth: 24
Sensitivity (at 1 kHz, , -15 dB Gain Setting): -21 dBFS/Pa
Maximum SPL (1 kHz at 1% THD, -15 dB Gain Setting): 115.2 dB SPL
Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting):
- Cardioid: 75 dB
- Toroid: 67 dB
Latency (Not including Dante latency): <1 ms
Self Noise (-15 dB Gain Setting):
- Cardioid 19.2 dB SPL-A
- Toroid 26.8 dB SPL-A
Dynamic Range (-15 dB Gain Setting):
- Cardioid: 96 dB
- Toroid: 90 dB SPL
Built-in Digital Signal Processing
- Per Channel: Equalizer (4-band Parametric) , Mute, Gain (140 dB range)
- System: Automatic mixing, Low-Cut Filter (-12 dB/octave @150 Hz)
Networking
Cable Requirements: Cat 5e or higher (shielded cable recommended)
Frequency Response: Frequency response measured from a distance of 2 feet (61 cm).
Polar Pattern (All channels independently adjustable): Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional
Connector Type: RJ45
Power Requirements: Power over Ethernet (PoE), Class 0
Power Consumption: 4W, maximum
Weight: 362 g (0.8 lbs)
Dimensions (H x W x D): 3.6 x 13.4 x 13.4 cm (1.4 x 5.3 x 5.3 in.)
Control application: HTML5 Browser-based
Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
Audio
Frequency Response: 100 to 20,000 Hz
Dante Digital Output:
- Channel Count 5 total channels (4 independent transmit channels, 1 Automatic mixing transmit channel)
- Sampling Rate: 48 kHz
- Bit Depth: 24
Sensitivity (at 1 kHz, , -15 dB Gain Setting): -21 dBFS/Pa
Maximum SPL (1 kHz at 1% THD, -15 dB Gain Setting): 115.2 dB SPL
Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting):
- Cardioid: 75 dB
- Toroid: 67 dB
Latency (Not including Dante latency): <1 ms
Self Noise (-15 dB Gain Setting):
- Cardioid 19.2 dB SPL-A
- Toroid 26.8 dB SPL-A
Dynamic Range (-15 dB Gain Setting):
- Cardioid: 96 dB
- Toroid: 90 dB SPL
Built-in Digital Signal Processing
- Per Channel: Equalizer (4-band Parametric) , Mute, Gain (140 dB range)
- System: Automatic mixing, Low-Cut Filter (-12 dB/octave @150 Hz)
Networking
Cable Requirements: Cat 5e or higher (shielded cable recommended)
Frequency Response: Frequency response measured from a distance of 2 feet (61 cm).
