SHURE PGA98H
Cardioid Condenser Instrument Clip Microphone
Cardioid condenser instrument clip microphone provides clear reproduction of wind instrument sound sources. The product includes an integrated horn clamp, a flexible gooseneck design and a preamplifier for phantom power and XLR connection.
4,730,000đ
Brand: Shure
Product Code:PGA98H-LC

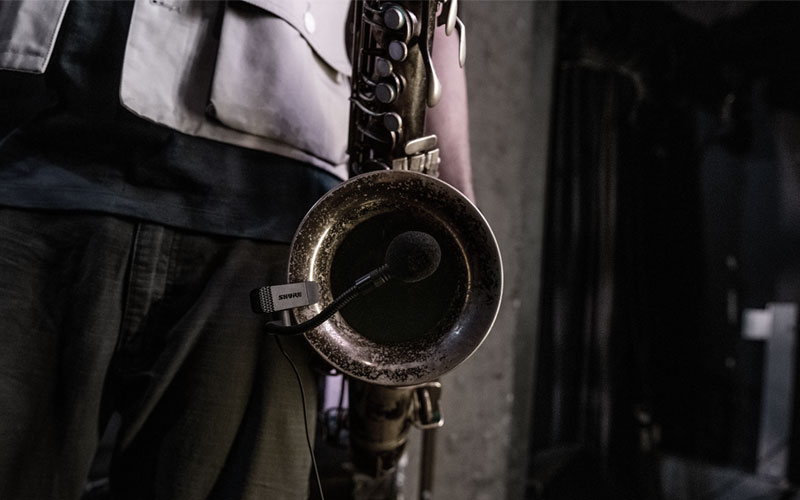

The PGA98H is a professional quality wind instrument microphone with an updated design that features a black metallic finish and grille offering an unobtrusive visual presence. Featuring a flexible, discrete gooseneck design with highly durable construction, horn clamp, and TA4F connector for use with wireless systems, the PGA98H is ideal for both live performance and recording.
FEATURES
- Tailored microphone cartridge design for clear reproduction of wind instrument sound sources.
- Flexible gooseneck design makes accurate positioning quick and easy
- Integrated horn clamp for quick and easy mounting
- In-line preamplifier requires phantom power and a direct XLR connection
- Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
- Updated industrial design with black metallic finish and grille for unobtrusive visual presence
- With TA4F connector for use with wireless bodypack systems (no preamplifier provided)
- Zipper pouch included for additional protection during storage or transport
- Legendary Shure quality design and construction for exceptional performance in rigorous environments
Type: Electret condenser
Frequency Response: 60 to 20,000 Hz
Polar Pattern: Cardioid
Output Impedance: 850 Ω
Sensitivity: -52 dBV/Pa (2.51 mV)
Maximum SPL: 130 dB SPL
Self-Noise: 27 dB SPL-A
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Weight: 210 g (8 oz.)
Connector: PGA98H-XLR/PGA98H-LC: Three-pin professional audio (XLR), male | PGA98H-TQG: 4-pin, female TA4F miniature XLR connector
Housing: Cast Zinc
Power Requirements: 11–52 VDC phantom power (2 mA)
Frequency Response: 60 to 20,000 Hz
Polar Pattern: Cardioid
Output Impedance: 850 Ω
Sensitivity: -52 dBV/Pa (2.51 mV)
Maximum SPL: 130 dB SPL
Self-Noise: 27 dB SPL-A
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Weight: 210 g (8 oz.)
Connector: PGA98H-XLR/PGA98H-LC: Three-pin professional audio (XLR), male | PGA98H-TQG: 4-pin, female TA4F miniature XLR connector
Housing: Cast Zinc
Power Requirements: 11–52 VDC phantom power (2 mA)
User Guide & Specs
Spec Sheet
- 1 - Integrated horn clamp
- 1 - Zipper pouch
- 1 - TA4F connector for use with wireless bodypack systems
