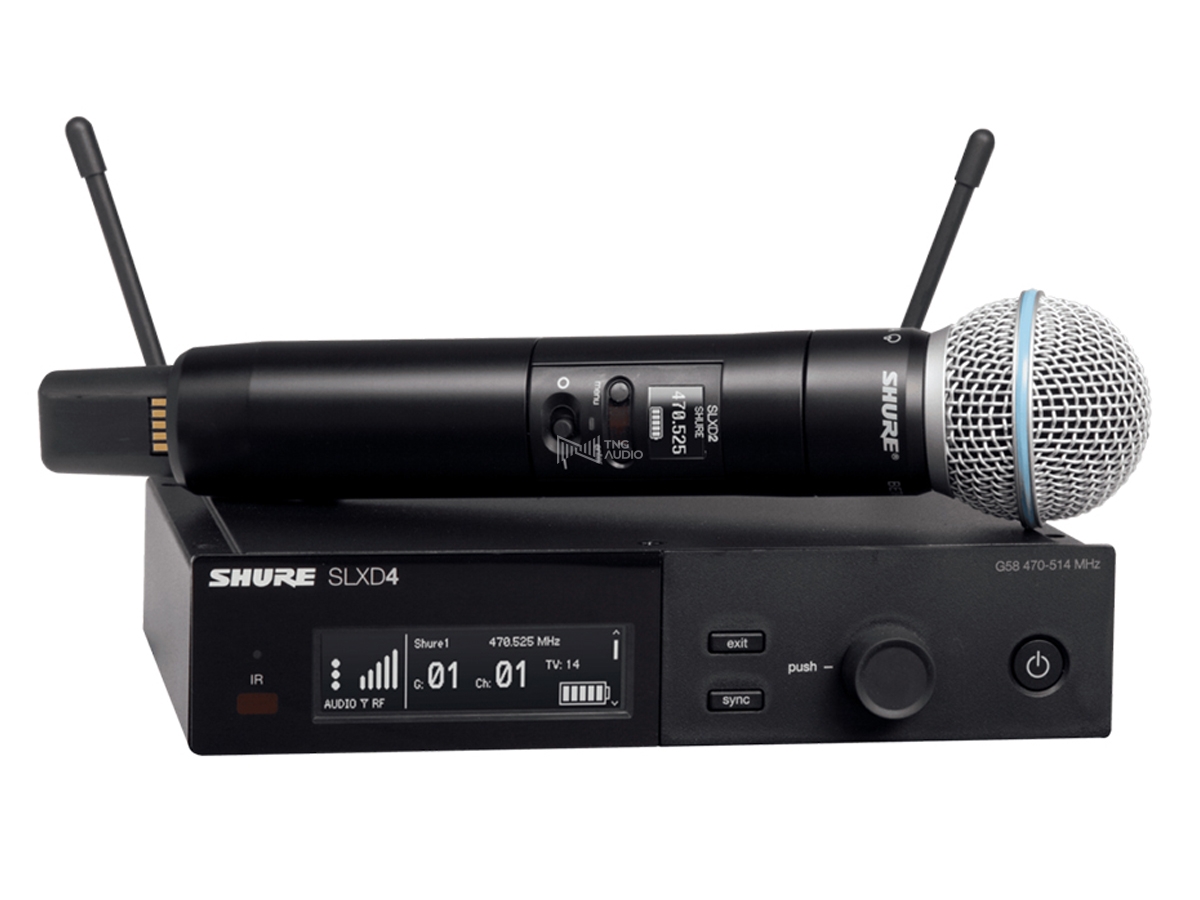

SHURE SLXD24/B58

SHURE SLXD24/Beta58

Wireless System with Beta®58A Handheld Transmitter
Featuring the Beta®58A Supercardioid Dynamic Microphone capsule on top of the SLXD2 handheld wireless transmitter, the SLXD24/B58 provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.
Brand:
Product Code:SLXD24A/B58
The SLXD24/B58 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver and SLXD2/B58 handheld transmitters with antenna and rackmount accessories and 2 AA batteries.

Features
  •     Transparent 24-bit digital audio
  •     Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  •     120 dB dynamic range
  •     Digital predictive switching diversity
  •     Operating range of 100 m (300 ft.)
  •     44 MHz tuning bandwidth (region dependent)
  •     32 available channels per frequency band (region dependent)
  •     Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  •     Easy pairing of transmitters and receivers over IR scan and sync
  •     Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics.
  •     Rugged metal construction

  • Sound source: Speech, Vocals
  • Environment: Club, Conference Room, Corporate Presentation, Auditorium, Lecture Hall, Live Performance, Place of worship, Rehearsal Space, Theater Stage

SYSTEM

RF

  • RF Carrier Frequency Range: 470–937.5 MHz, varies by region (See Frequency Range and Output Power table)
  • Working Range: 100 m ( 328 ft)
  • RF Tuning Step Size: 25 kHz, varies by region
  • Image Rejection: >70 dB, typical
  • RF Sensitivity: −97 dBm at 10-5 BER

AUDIO

  • Latency: 3.2 ms
  • High-Pass / Low Cut Filter: 150 Hz @ -12 db/oct
  • Audio Frequency Response: 20 Hz– 20 kHz (+1, -2 dB)
  • Audio Dynamic Range: 118 dB at 1% THD, A-weighted, typical
  • Total Harmonic Distortion: <0.02%
  • System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (with respect to the ring of the 6.35 mm output) output.
  • Mic Offset Range: 0 to 21 dB (in 3 dB steps)

TEMPERATURE RANGE

  • Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
  • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)


SLXD2

  • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
  • Dimensions (Dia. × L): 1.46 × 6.93 in(37.1 × 176 mm)
  • Weight: 5.2 oz. (147 g)
  • Housing: Aluminum
AUDIO INPUT
  • Configuration: Unbalanced
  • Maximum Input Level: 8.2 dBV
RF OUTPUT
  • Antenna Type: Integrated Single-Band Helical
  • Occupied Bandwidth: <200 kHz
  • Modulation Type: Shure Propietary Digital
  • Power: 1 mW/10 mW


SLXD4 / SLXD4D

  • Dimensions
SLXD4
42 x 197 x 152 mm (1.65 x 7.76 x 5.98 in.), H x W x D
SLXD4D
42 x 393 x 152 mm (1.65 x 15.47 x 5.98 in.), H x W x D
  • Weight
SLXD4
816 g, without antennas
SLXD4D
1451 g, without antennas
  • Housing: Galvanized Steel
  • Power Requirements: 15 V DC @ 600 mA, supplied by external power supply (tip positive)


RF INPUT

  • Spurious Rejection: >75 dB, typical
  • Connector Type: BNC
  • Impedance: 50 Ω
  • Phantom Power Protection:
1/4" (6.35 mm)
Yes
XLR
Yes

AUDIO OUTPUT

  • Gain Adjustment Range: -18 to +42 dB (in 1 dB steps)
  • Configuration
1/4" (6.35 mm)
Balanced (Tip = audio +, Ring = audio -, Sleeve = ground )
XLR
Balanced (1=ground, 2=audio +, 3=audio −)
  • Impedance

1/4" (6.35 mm)
1.3 kΩ (670 ΩUnbalanced)
XLR (line)
400 Ω (200 ΩUnbalanced)
XLR (mic)
150 Ω
  • Full Scale Output
1/4" (6.35 mm)
+15 dBV differentially (+9 dBV single)
XLR
LINE setting= +15  dBV, MIC setting= -15  dBV
  • Mic/Line Switch: 30 dB pad

NETWORKING

  • Network Interface: Single Port Ethernet 10/100 Mbps
  • Network Addressing Capability: DHCP or Manual IP address
  • Maximum Cable Length: 100 m (328 ft)
