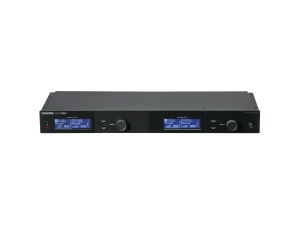

SHURE SLXD4Q+
Quad Channel Receiver
The SLXD4Q+ Quad Channel Receiver is the best choice for streamlining SLX-D digital wireless performance into a space-saving footprint. Featuring expanded capabilities for confident speech presentation and vocal performance - from lecture halls to live entertainment.
Viewed236 times
FOUR CHANNELS OF WIRELESS VERSATILITY, WHEREVER REQUIRED
SLX-D® Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with streamlined network-ready setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design in a convenient full-rack quad configuration, the SLXD4Q+ efficiently saves space and accessories, and easily scales to match channel requirements.- Four channels in one rack space
- Wide 138 MHz tuning range
- 32 available channels per frequency band (region dependent)
- Transparent 24-bit digital audio
- 118 dB dynamic range
- Audio Summing matches receiver output to available mixer channels (4,3,2 or 1)
- 4 XLR and 4 1/4" outputs and 2 local ethernet connections
- RF Cascade creates an 8-channel system by linking two SLXD4Q+ together, no other accessories required
- Bias Voltage power supply management
- Digital predictive switching diversity
- Easy pairing of transmitters and receivers over IR scan and sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- Rugged metal construction
Configuration: Receiver
Analog/Digital: Digital
Receiver Type: Rackmount
Number of Receivers: 4 channel
Range: 100m (328 ft.) Line-of-sight
Compatibility: Shure SLX-D
Antenna Type: Detachable
Front Panel Display: Yes
Displays: LCD
Dynamic Range: 118 dB at 1% THD, A-weighted, typical
Outputs: 4 x XLR, 4 x 1/4"
Data I/O: 2 x RJ-45
Rackmountable: Yes
Rack Spaces: 1U
Power Source: 15V DC power supply (included)
Dimensions
42 x 393 x 152 mm (1.65 x 15.47 x 5.98 in.), H x W x D
Weight
1750 g, without antennas
Housing
Galvanized Steel
Power Requirements
15 V @ 1.03 A with Dante; 15 V @ 0.9 A without Dante
