SHURE SVX24/PG58

SHURE SVX24/PG58

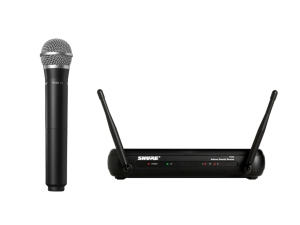

Wireless Vocal System
Includes SVX4 Diversity Receiver, and SVX2 Handheld Microphone Transmitter with PG58 Microphone.
Brand:
Product Code:SVX24E/PG58
SVX Wireless Systems are designed for performers that manage their own sound and desire the freedom of wireless. Nothing could be more versatile or easy to operate. Affordable replacement parts and a rugged housing make this an ideal investment for years of confident performance. Your choice of wireless systems with wired mics that come complete with all the accessories you need.

Rugged mic tuned to accentuate the clarity of lead and back up vocals.
• 1 x SVX2 : Handheld Transmitter with PG58 Mic
• 1 x SVX4 : Diversity Receiver

  • Application: Vocals
  • Sound source: Harmonica, Speech, Vocals
  • Environment: Live Performance

SYSTEM

  • Working Range (Line of Sight):
- HI power mode: 75 m (250 ft)
- LO power mode: 18 m (60 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
  • Audio Frequency Response: 50 Hz to 15 kHz
Note: Dependent on microphone type
  • Total Harmonic Distortion (Ref. ±48 kHz deviation, 1 kHz tone): <1%
  • Dynamic Range: 90 dB A-weighted, typical
  • Operating Temperature Range: –10°C (14°F) to 50°C (122°F)
Note: Battery characteristics may limit this range.
  • Transmitter Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output


SVX2 Handheld Transmitter

  • Audio Input Level: –20  dBV maximum
  • Input Impedance: 22 kΩ
  • RF Output (dependent on applicable country regulations)
- HI power mode: 10 mW maximum
- LO power mode: 1 mW maximum
  • Dimensions: 254 mm X 51 mm diameter (10in. X 2 in.)
  • Weight: 270 g (10.2 oz.) (without batteries)
  • Housing: Molded ABS
  • Power Requirements: 2 “AA” size alkaline or rechargeable batteries
  • Battery Life: up to 10 hours (alkaline)


SVX4 Receiver

  • Dimensions: 32  mm  X 168  mm X 104.5  mm (1.26 in. x 6.625 in. x 4.2 in.)
  • Weight: 245 g (11.5 oz.)
  • Housing: Molded ABS
  • Audio Output Level (Ref. ±48 kHz deviation with 1 kHz tone):
- XLR connector into 100 kΩ load: -16  dBV (MIC)
- 6.35 mm (1/4”) connector into 100 kΩ load: -22  dBV (MIC)
  • Output Impedance
- XLR connector: 600 Ω
- 6.35 mm (1/4”) connector: 600 Ω
  • Sensitivity: –105 dBm for 12 dB SINAD, typical
  • Image Rejection >50 dBm, typical
  • Power Requirements: 12 to 18 V DC @ 130 mA, supplied by external power supply

Manual & Specs

Brochure

SVX Brochure en (en)
  • 1 Power supply
  • 1 Microphone adapter
