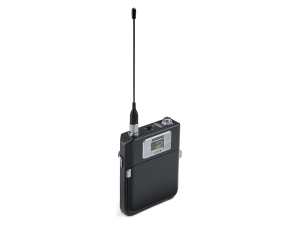

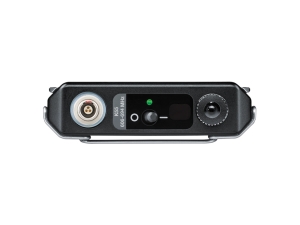

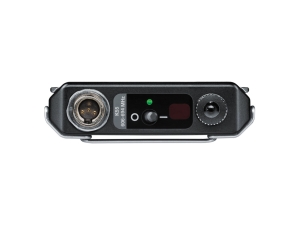

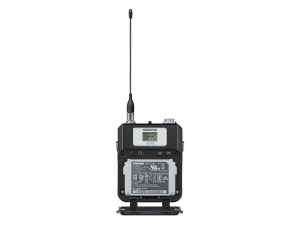

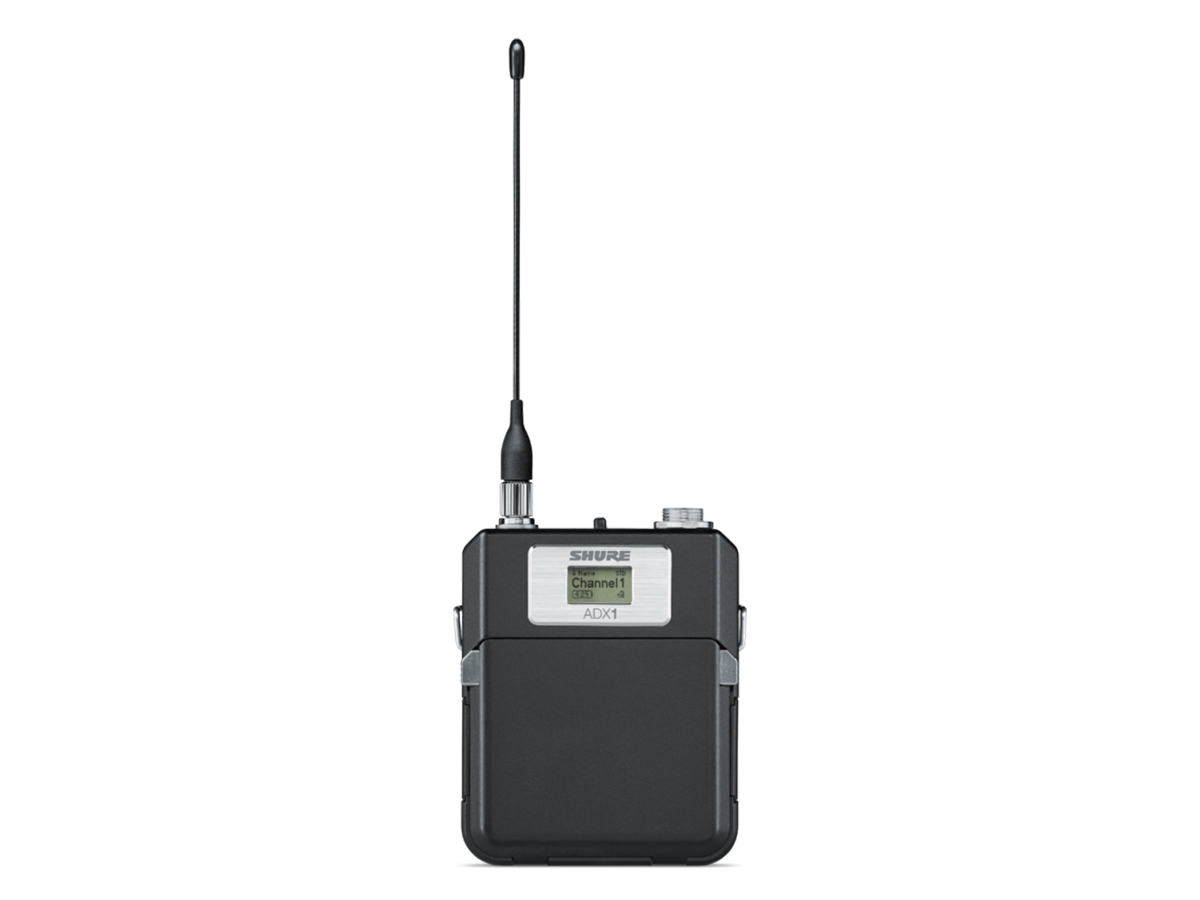

SHURE ADX1

• Gain Offset Range: –12 to 21 dB (in 1 dB steps)
• Battery Type: SB910 Rechargeable Lithium-Ion
• Battery Run Time @10 mW: up to 10 hours
• Dimensions (H × W × D): 3.6 × 2.7 × 0.8 in (91 × 68 × 19 mm)
• Weight: 5.0 oz (142 g)
• Housing: Aluminum

• Connector: 4-Pin male mini connector (TA4M)/ LEMO3 Connector
• Configuration: Unbalanced
• Impedance:

• Maximum Input Level 1 kHz at 1% THD:
• - Pad Off: 8.5 dBV (7.5 Vpp)
• - Pad On: 20.5 dBV (30 Vpp)
• Preamplifier Equivalent | Input Noise (EIN) | System Gain Setting ≥20: –120 dBV

• Connector: SMA
• Antenna Type: UHF 1/4 Wave
• Impedance: 50 Ω
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure Axient Digital Propietary
• Power: 2 mW, 10 mW, 20 mW, 40 mW
• Specific Absorption Rate (SAR): <0.20 W/kg

• Network Type: IEEE 802.15.4
• Antenna Type: ZigBee Dual Conformal
• Frequency Range: 2.40 to 2.4835 GHz (24 Channels)
• RF Output Power (Varies By Region): 10 dBm (ERP)
