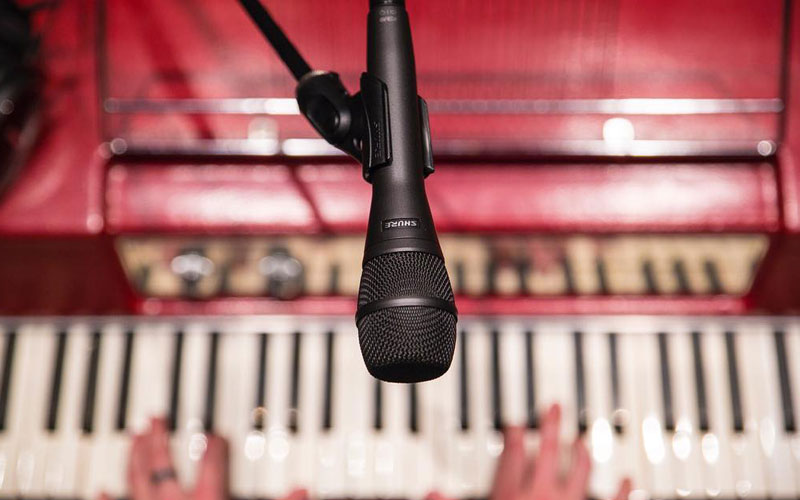

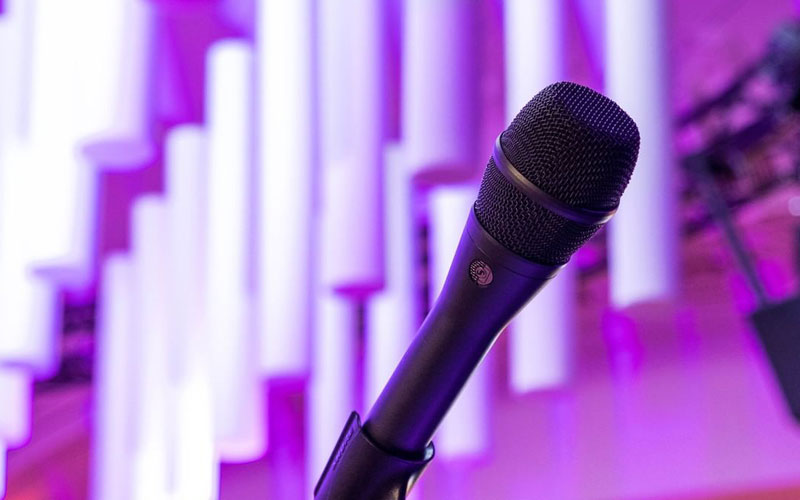

SHURE KSM9

• Cartridge Type: Electret Condenser
• Polar Pattern: Cardioid, Supercardioid (selectable)
• Frequency Response: 50 to 20,000 Hz
• Output Impedance: 150 Ω
• Sensitivity (open circuit voltage, @ 1 kHz, typical): −51 dBV/Pa[1] (2.8 mV)
• Maximum SPL (1 kHz at 1% THD[2])

• Signal-to-Noise Ratio[3]: 72 dB
• Dynamic Range (@ 1 kHz)

• Clipping Level (20 Hz to 20 kHz, 1% THD)

• Self Noise (equivalent SPL, A-weighted, typical): 22 dB SPL-A
• Common Mode Rejection (10 to 100,000 Hz): ≥60 dB
• Connector: Three-pin professional audio (XLR), male, balanced
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Power Requirements: 11 to 52 V DC[4]phantom power (IEC-61938) 5.2 mA, maximum
• Net Weight: 300 g (10.6 oz.)

[1] 1 Pa=94 dB SPL

[2]THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at specified SPL

[3]S/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weighted

[4]All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity.

• 1 Hộp đựng có khóa
• 1 Chân đế
• 1 Ốc adapter 5/8" đến 3/8"

Thông số kỹ thuật

• A25D (Kẹp micro)
• RPM260 (Củ mic màu Champagne thay thế cho Micro có dây KSM9 )
• RPM262 (Củ mic màu xám than thay thế cho Micro có dây KSM9 )
