SHURE WL93
Miniature Lavalier Microphone
Omnidirectional miniature lavalier microphone provides full, clear sound in speech applications, like broadcast presenting and speeches. Features smooth frequency response, controlled low-frequency roll off, and versatile mounting accessories.
3,190,000đ
Brand: Shure
Product Code:WL93-X

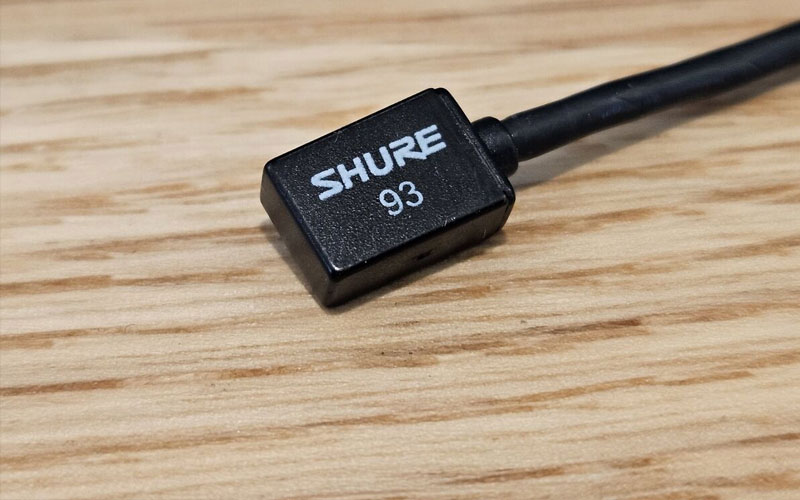

Model WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable.

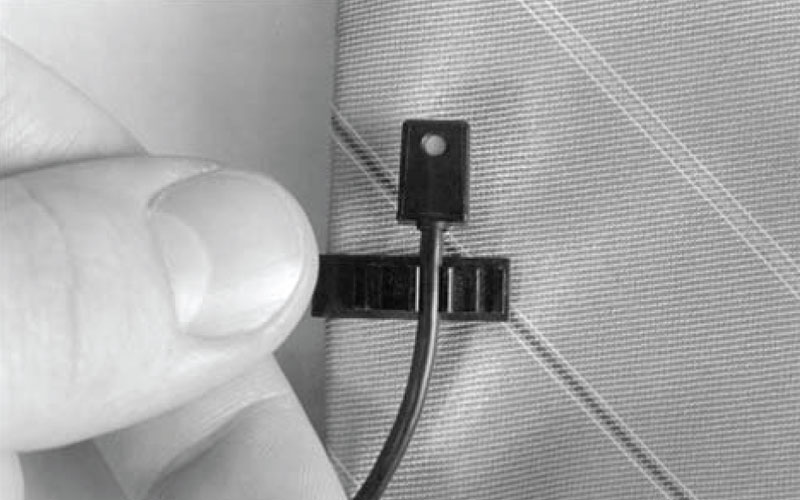

All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications.
All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.
All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications.
All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.
FEATURES
- Subminiature lavalier design; ideal size for theater, television, broadcasting, video, film, and sound reinforcement
- Small, inconspicuous mounting hardware
- Full, clear sound comparable to larger microphones
- Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
- Controlled low-frequency rolloff reduces low-frequency clothing and room noise
- Low distortion, wide dynamic range
- Uniform omnidirectional polar pattern
Find An Answer
How to Choose the Best Lavalier Microphone
Shure Lavalier / Headset compatibility with Wireless Systems
TwinPlex: Takes the Stage
- Applications: Speech
- Sound sources: Speech, Vocals
- Usage environments: Hotel Convention, Theater Stage
Type: Condenser (electret bias)
Frequency Response: 50 to 20,000 Hz
Polar Pattern: Omnidirectional, uniform with frequency
Output Impedance: 3000 Ω
Output Level open circuit voltage: −38 dBV/Pa(13 mV)
Output Clipping Level at 1 kHz: 0.25 V at 120 dB
Total Harmonic Distortion: Less than 1% at 120 dB
Maximum SPL: 120 dB
Dynamic Range (Maximum SPL, A-weighted): 102 dB
Output Noise (equivalent SPL): 18 dB typical, A-Weighted
Hum Pickup: N/A
Signal-to-Noise Ratio: 76 dB at 94 dB SPL (IEC 651)
Polarity: Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground)*
Recommended Operating Voltage: 2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4)
Current Drain: 40 µA typical
Environmental Conditions
- Operating Temperature: −18 to 57°C (0 to 135°F)
- Storage Temperature: −29 to 74°C (−20 to 165°F))
Cable: Black 1.27 m (4.17 ft), attached, two-conductor, shielded, terminated by miniature Connector Type TA4F (: Tan 1.27 m[4.17 ft])
Case Microphone: Black ABS thermoplastic case with stainless-steel-mesh grille
Net Weight Microphone: 16 g (0.57 oz.)
Frequency Response: 50 to 20,000 Hz
Polar Pattern: Omnidirectional, uniform with frequency
Output Impedance: 3000 Ω
Output Level open circuit voltage: −38 dBV/Pa(13 mV)
Output Clipping Level at 1 kHz: 0.25 V at 120 dB
Total Harmonic Distortion: Less than 1% at 120 dB
Maximum SPL: 120 dB
Dynamic Range (Maximum SPL, A-weighted): 102 dB
Output Noise (equivalent SPL): 18 dB typical, A-Weighted
Hum Pickup: N/A
Signal-to-Noise Ratio: 76 dB at 94 dB SPL (IEC 651)
Polarity: Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground)*
Recommended Operating Voltage: 2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4)
Current Drain: 40 µA typical
Environmental Conditions
- Operating Temperature: −18 to 57°C (0 to 135°F)
- Storage Temperature: −29 to 74°C (−20 to 165°F))
Cable: Black 1.27 m (4.17 ft), attached, two-conductor, shielded, terminated by miniature Connector Type TA4F (: Tan 1.27 m[4.17 ft])
Case Microphone: Black ABS thermoplastic case with stainless-steel-mesh grille
Net Weight Microphone: 16 g (0.57 oz.)
