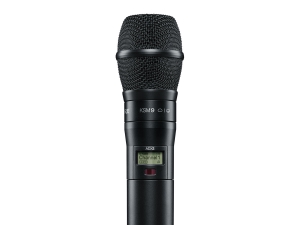

SHURE ADX2/K9
Handheld Wireless Microphone Transmitter with KSM9 Capsule
ADX2/K9, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
Brand: Shure
Product Code:ADX2/KSM9B
The ADX2/K9 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.
- Works with Axient® Digital Wireless Systems
- Features the KSM9 cartridge
- Includes two SB920 rechargeable batteries
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
FEATURES
- Durable, moisture-resistant, lightweight metal case in black and nickel finish
- Up to 9 hours of runtime with SB920 rechargeable battery
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
Find An Answer
Are the wireless mic elements interchangeable?
Shure Wireless Microphone Compatibility Chart
Can I use two (or more) wireless microphones with one receiver?
Shure Axient Digital was responsible for delivering the Extraordinary Sound behind Viña del Mar International Song Festival
Application: TV/Film & ENG, Theater
SoundSources: Vocals
Environments: Auditorium, Lecture Hall, Live Performance, Place of worship, Rehearsal Space, Stadium, Stage & Event, Theater Stage
Shure Wireless Microphone Compatibility Chart
Can I use two (or more) wireless microphones with one receiver?
Shure Axient Digital was responsible for delivering the Extraordinary Sound behind Viña del Mar International Song Festival
Application: TV/Film & ENG, Theater
SoundSources: Vocals
Environments: Auditorium, Lecture Hall, Live Performance, Place of worship, Rehearsal Space, Stadium, Stage & Event, Theater Stage
- Gain Offset Range: –12 to 21 dB (in 3 dB steps)
- Battery Type: SB920 Rechargeable Lithium-Ion
- Battery Run Time @10 mW: up to 9 hours
- Dimensions (L × Dia.): 10.0 × 2.0 in (254 × 51 mm)
- Weight: 11.9 oz (338 g)
- Housing: Cast Aluminum
AUDIO INPUT
- Configuration: Unbalanced
- Maximum Input Level: 145 dB SPL, typical (SM58)
RF OUTPUT
- Antenna Type: Integrated Dual-Band Helical
- Occupied Bandwidth: <200 kHz
- Channel-to-Channel Spacing: Standard Mode: 350 kHz | High-Density Mode: 125 kHz
- Modulation Type: Shure Axient Digital Propietary
- Power: Single Carrier Mode: 2 mW, 10 mW, 20 mW, 50 mW | Frequency Diversity Mode: 2 × 20 mW
- Specific Absorption Rate (SAR): <0.21 W/kg
SHOWLINK®
- Network Type: IEEE 802.15.4
- Antenna Type: ZigBee Dual Conformal
- Frequency Range: 2.40 to 2.4835 GHz (24 Channels)
- RF Output Power: 10 dBm (ERP)
