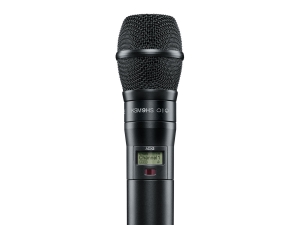

SHURE ADX2/K9HS

SHURE ADX2/K9HS

Handheld Wireless Microphone Transmitter with KSM9HS Capsule
ADX2/K9HS, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
Brand:
Product Code:ADX2/KSM9HS
The ADX2/K9HS
is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.
  • Works with Axient® Digital Wireless Systems

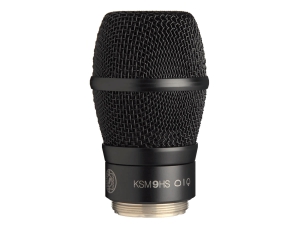

  • Features the KSM9HS cartridge
  • Includes two SB920 rechargeable batteries
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

FEATURES
  • Durable, moisture-resistant, lightweight metal case in black and nickel finish
  • Up to 9 hours of runtime with SB920 rechargeable battery
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission


Find An Answer

Are the wireless mic elements interchangeable?

Application: TV/Film & ENG, Theater
SoundSources: Vocals
Environments: Auditorium, Lecture Hall, Live Performance, Place of worship, Rehearsal Space, Stadium, Stage & Event, Theater Stage
  • Gain Offset Range: –12 to 21 dB (in 3 dB steps)
  • Battery Type: SB920 Rechargeable Lithium-Ion
  • Battery Run Time @10 mW: up to 9 hours
  • Dimensions (L × Dia.): 10.0 × 2.0 in (254 × 51 mm)
  • Weight: 11.9 oz (338 g)
  • Housing: Cast Aluminum

AUDIO INPUT
  • Configuration: Unbalanced
  • Maximum Input Level: 145 dB SPL, typical (SM58)

RF OUTPUT
  • Antenna Type: Integrated Dual-Band Helical
  • Occupied Bandwidth: <200 kHz
  • Channel-to-Channel Spacing: Standard Mode: 350 kHz | High-Density Mode: 125 kHz
  • Modulation Type: Shure Axient Digital Propietary
  • Power: Single Carrier Mode: 2 mW, 10 mW, 20 mW, 50 mW | Frequency Diversity Mode: 2 × 20 mW
  • Specific Absorption Rate (SAR): <0.21 W/kg

SHOWLINK®
  • Network Type: IEEE 802.15.4
  • Antenna Type: ZigBee Dual Conformal
  • Frequency Range: 2.40 to 2.4835 GHz (24 Channels)
  • RF Output Power: 10 dBm (ERP)
